Engine Front Cover — 2016 workshop reference 209

Engine Front Cover — original illustration 1, reference 209Original colors & callouts · Select to enlarge

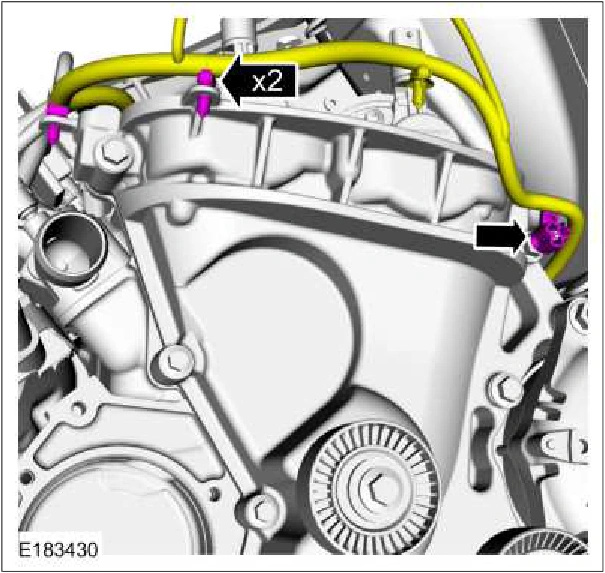

18. Remove the wiring harness retainers.

Remove the nut and ground wire.

Engine Front Cover — original illustration 2, reference 209Original colors & callouts · Select to enlarge

19. Remove the bolt and the accessory drive belt tensioner.
