Engine Front Cover — 2016 workshop reference 220

Engine Front Cover — original illustration 1, reference 220Original colors & callouts · Select to enlarge

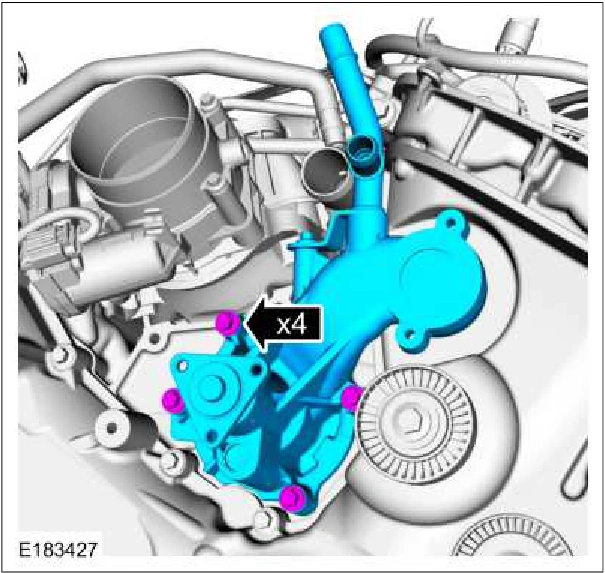

13. Install the coolant pump and bolts. Torque : Stage 1: 177 lb.in (20 Nm) Stage 2: 60°

Engine Front Cover — original illustration 2, reference 220Original colors & callouts · Select to enlarge

14. Install the coolant pump pulley and the bolts.
