2016 workshop · Engine

Engine Front Cover

303-01C Engine - 5.0L

2016 Mustang5.0LReference 223 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine Front Cover — original illustration 1, reference 223Original colors & callouts · Select to enlarge

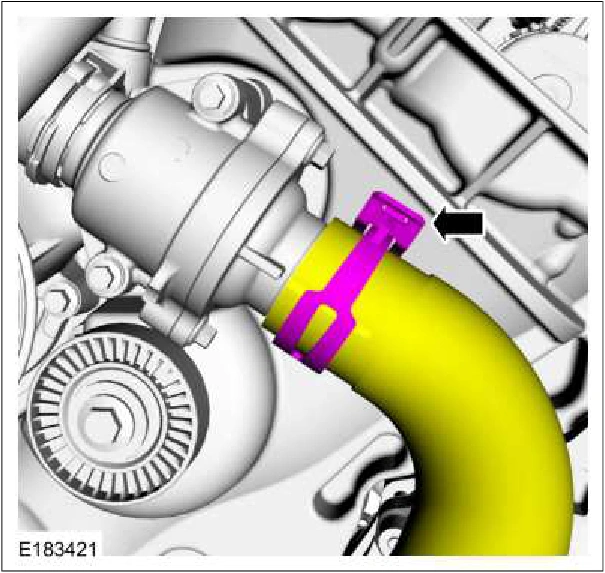

19. Connect the lower radiator hose to the thermostat housing assembly.

Engine Front Cover — original illustration 2, reference 223Original colors & callouts · Select to enlarge

20. Install the following items:

1. Refer to: Valve Cover LH (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Refer to: Valve Cover RH (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

3. Refer to: Crankshaft Front Seal (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

21. Tighten. Torque : 18 lb.ft (25 Nm)

Source reference 223
