Engine Front Cover — 2016 workshop reference 226

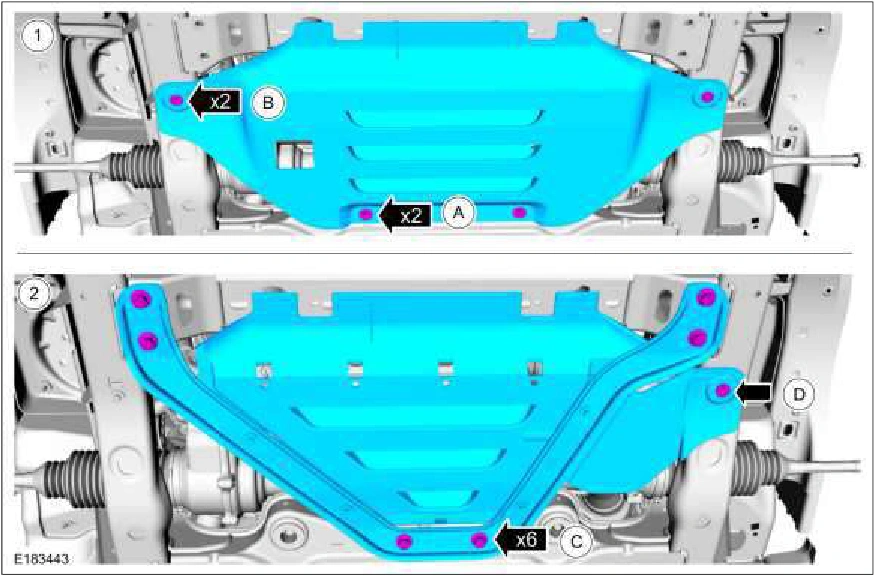

A: 97 lb.in (11 Nm) B: 18 lb.in (2 Nm)

2. Install the subframe bracket and underbody shield assembly and the bolts. Torque : C: 46 lb.ft (63 Nm) D: 18 lb.in (2 Nm)

Engine Front Cover — original illustration 1, reference 226Original colors & callouts · Select to enlarge

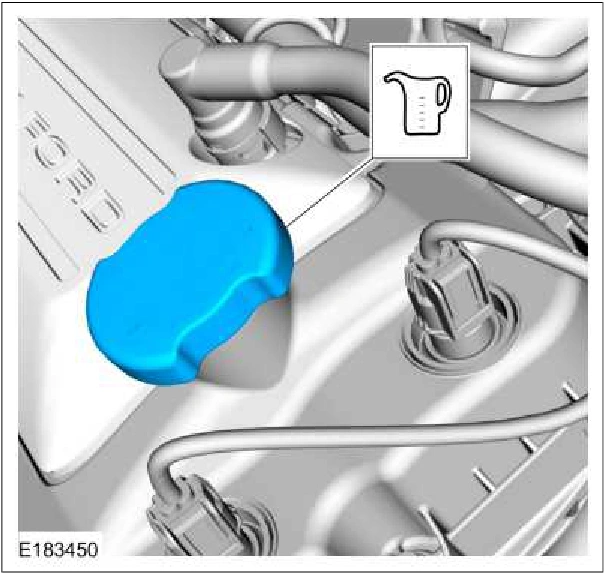

27. Fill the engine with clean engine oil. Refer to: Specifications (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Specifications). Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Engine Front Cover — original illustration 2, reference 226Original colors & callouts · Select to enlarge

28. Connect the battery positive and ground cables.
