Engine Front Cover — 2016 workshop reference 222

Engine Front Cover — original illustration 1, reference 222Original colors & callouts · Select to enlarge

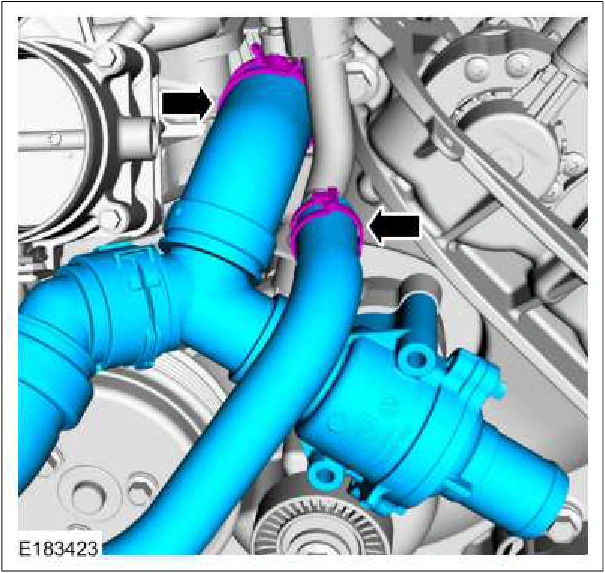

17. Install the upper radiator hose T-connector/thermostat housing assembly and clamp.

Install the degas bottle coolant hose and clamp.

Engine Front Cover — original illustration 2, reference 222Original colors & callouts · Select to enlarge

18. Install the thermostat housing bolts. Torque : 89 lb.in (10 Nm)

Source reference 222
