2016 workshop · Body & Paint

Corrosion Prevention

501-25 Body Repairs - General Information

2016 MustangReference 2,199 / 6,619HTML edition
← Chapter contentsProcedure contents
Corrosion Prevention — original illustration 1, reference 2199Original colors & callouts · Select to enlarge

9. NOTE: Quarter panel inner view.

Apply to the closed channel portion of the spot weld flange areas. Apply to the exposed edges after carrying out the welding process. Make sure horizontal surfaces are well protected as they are more susceptible to corrosion. Material : ValuGard™ Rust Inhibitor / VG104, VG104A

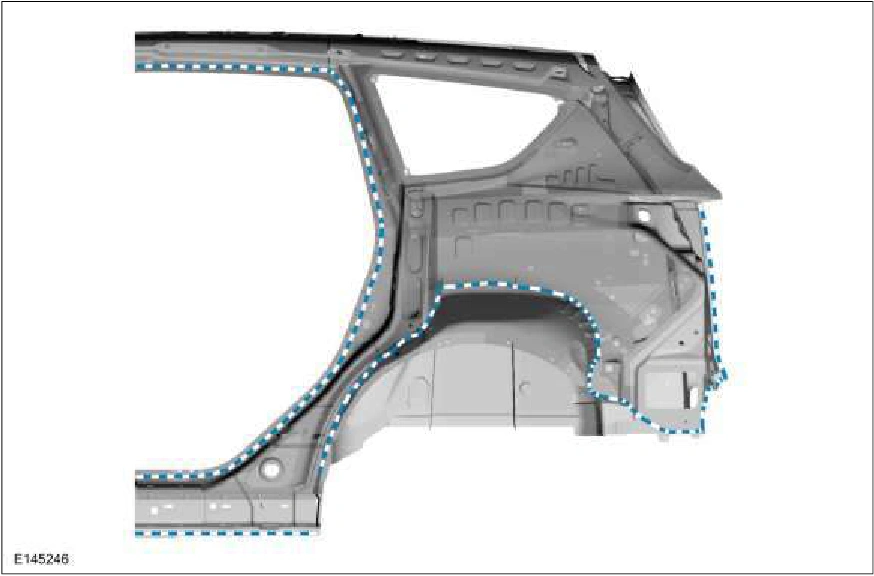

Corrosion Prevention — original illustration 2, reference 2199Original colors & callouts · Select to enlarge

10. NOTE: Door frame opening view.

Apply to the closed channel portion of the spot weld flange areas. Make sure horizontal surfaces are well protected as they are more susceptible to corrosion. Material : ValuGard™ Rust Inhibitor / VG104, VG104A

Source reference 2199

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
