A-Pillar Outer Panel

501-29 Side Panel Sheet Metal Repairs 2016 Mustang

Removal and Installation Procedure revision date: 01/28/2015

Special Tool(s) / General Equipment

Resistance Spotwelding Equipment

Hot Air Gun

Air Body Saw

8 mm Drill Bit

MIG/MAG Welding Equipment

Spot Weld Drill Bit

Locking Pliers

Materials

Name	Specification
Seam Sealer TA-2-B	-
Fusor® Flexible Foam Repair 3M™ 08463, Fusor® 121	-

Removal

1. Available service part-Coupe.

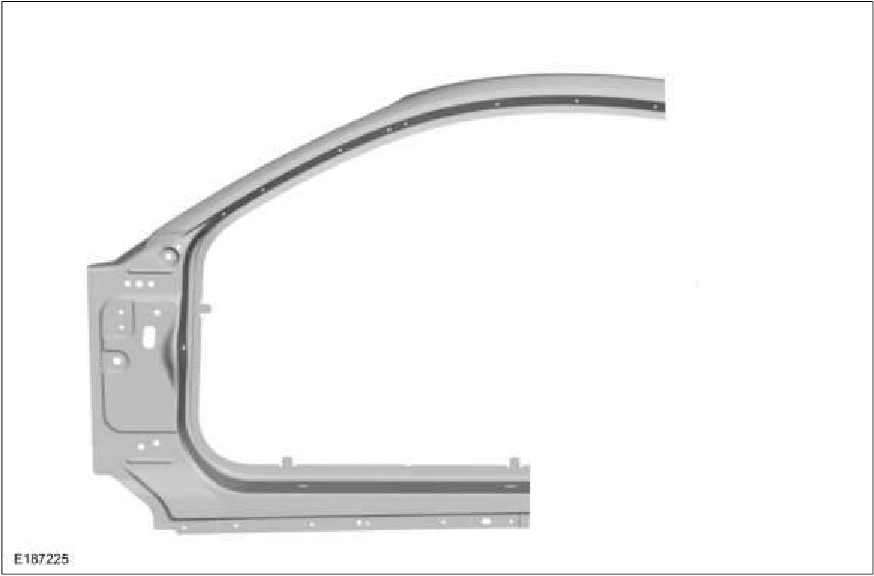

A-Pillar Outer Panel — original illustration 1, reference 2273Original colors & callouts · Select to enlarge

2. Available service part-Convertible.

Source reference 2273
