A-Pillar Outer Panel — 2016 workshop reference 2276

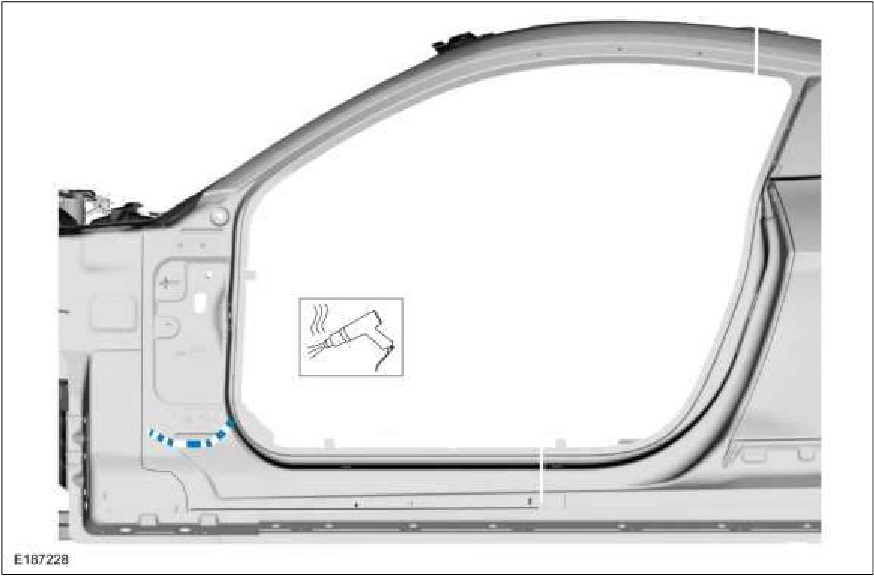

A-Pillar Outer Panel — original illustration 1, reference 2276Original colors & callouts · Select to enlarge

10. Remove the A-pillar panel.

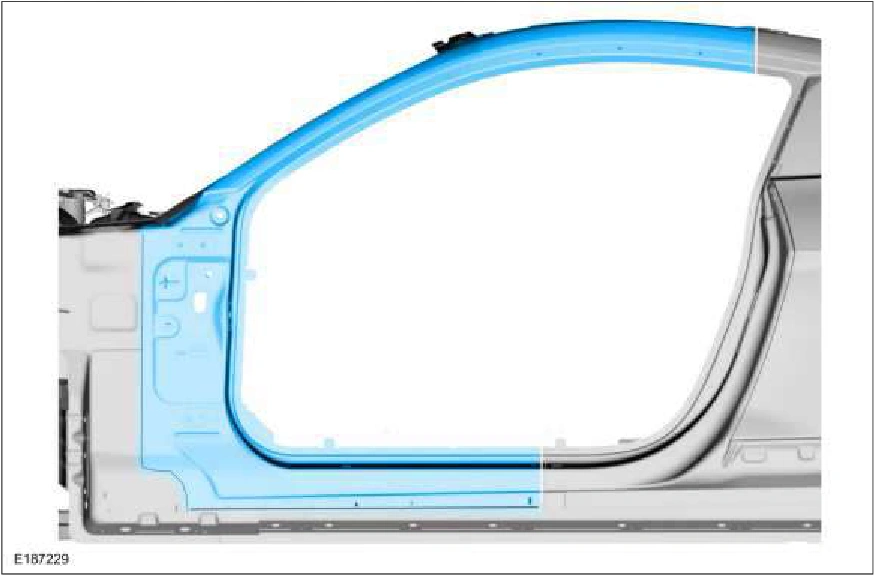

A-Pillar Outer Panel — original illustration 2, reference 2276Original colors & callouts · Select to enlarge

Installation

1. Drill holes for plug welds in the replacement panel. Use the General Equipment: 8 mm Drill Bit
