A-Pillar Outer Panel — 2016 workshop reference 2278

A-Pillar Outer Panel — original illustration 1, reference 2278Original colors & callouts · Select to enlarge

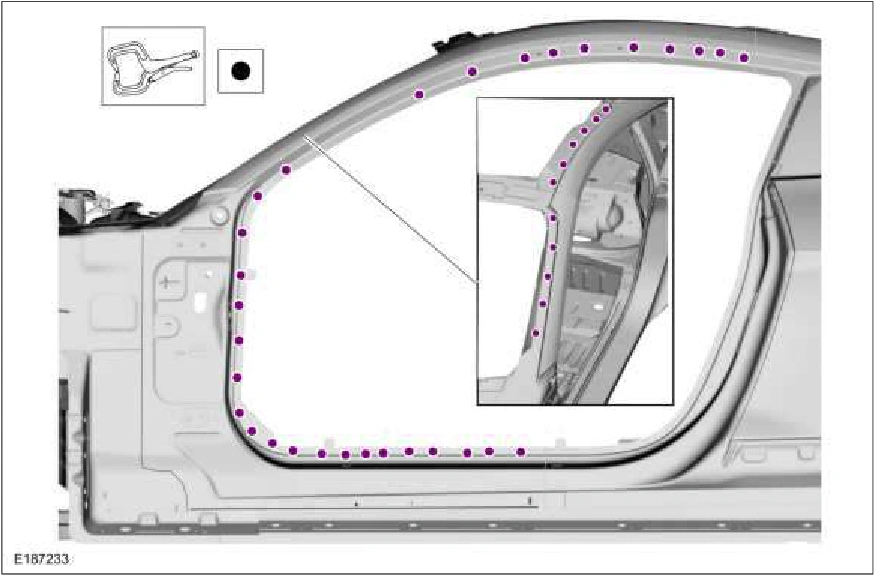

4. Spot weld the flange areas. Use the General Equipment: Resistance Spotwelding Equipment Use the General Equipment: Locking Pliers

A-Pillar Outer Panel — original illustration 2, reference 2278Original colors & callouts · Select to enlarge

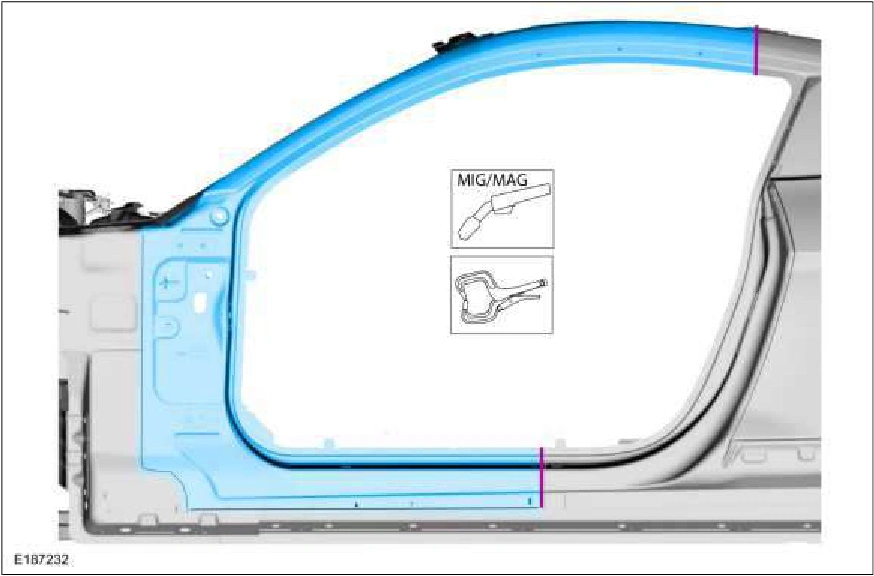

5. MIG weld the remaining portion of the A-pillar panel. Use the General Equipment: MIG/MAG Welding Equipment
