A-Pillar Outer Panel — 2016 workshop reference 2277

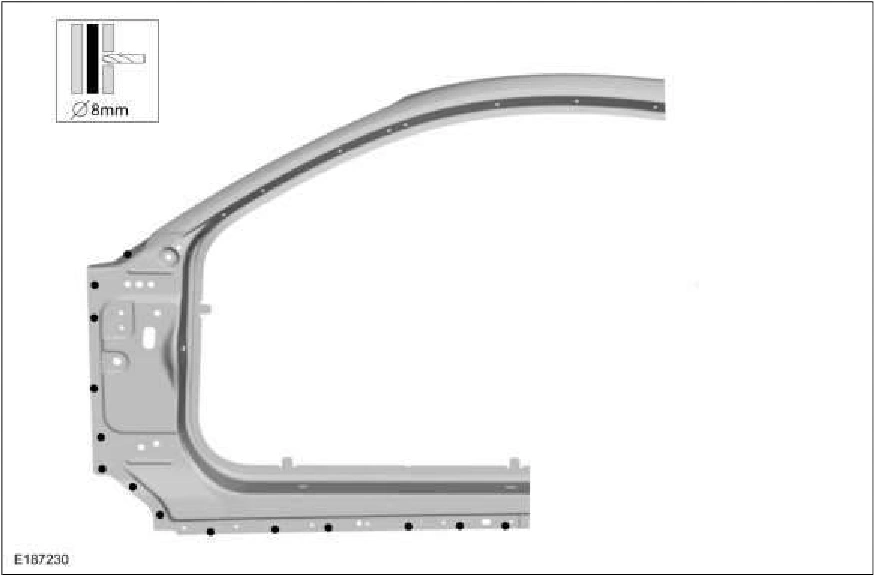

A-Pillar Outer Panel — original illustration 1, reference 2277Original colors & callouts · Select to enlarge

2. Apply NVH expanding foam to the inner reinforcement in the indicated area. Material : Fusor® Flexible Foam Repair / 3M™ 08463, Fusor® 121

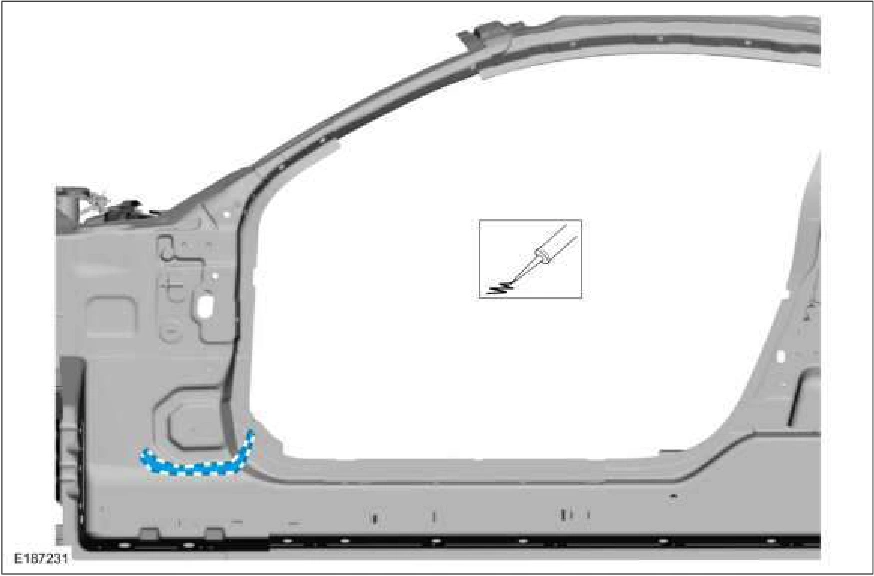

A-Pillar Outer Panel — original illustration 2, reference 2277Original colors & callouts · Select to enlarge

3. Install and seam weld the replacement A-pillar outer panel. Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers
