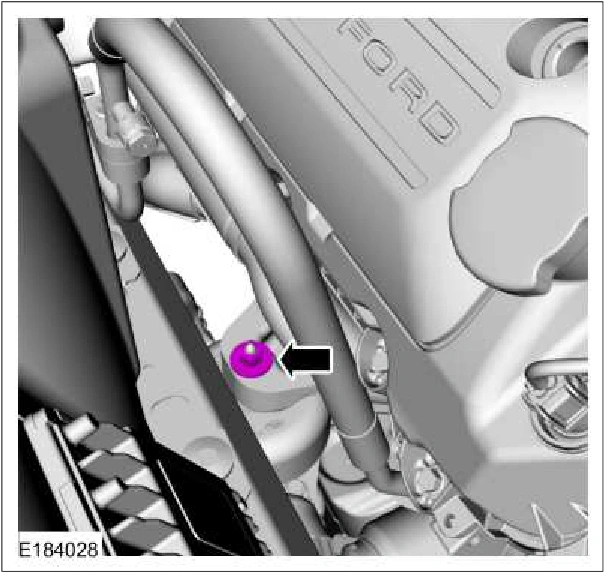

Engine Mount RH — original illustration 1, reference 240Original colors & callouts · Select to enlarge

12. NOTICE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs

should be positioned on the body structure. Failure to follow these instructions may result in body damage.

Install the special tools and raise the engine 50 mm (2 inch). Use Special Service Tool: 303-F072 Support Bar, Engine. , 303-050 (T70P-6000) Lifting Bracket, Engine.

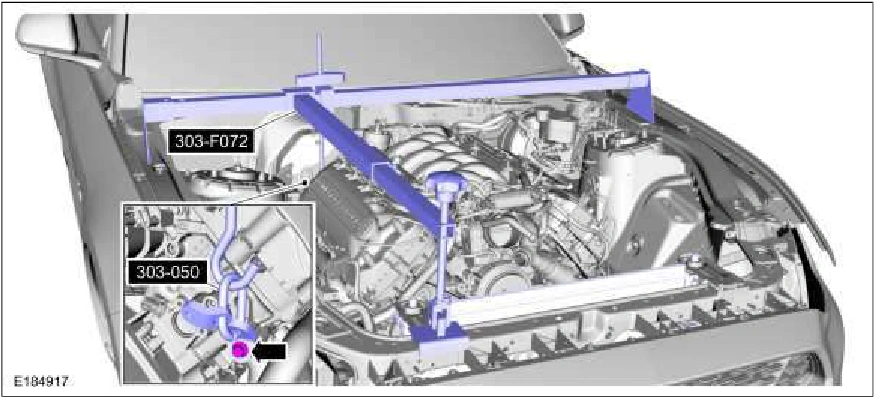

Engine Mount RH — original illustration 2, reference 240Original colors & callouts · Select to enlarge

13. Remove the bolts and the engine mount.
