Engine Mount RH — 2016 workshop reference 241

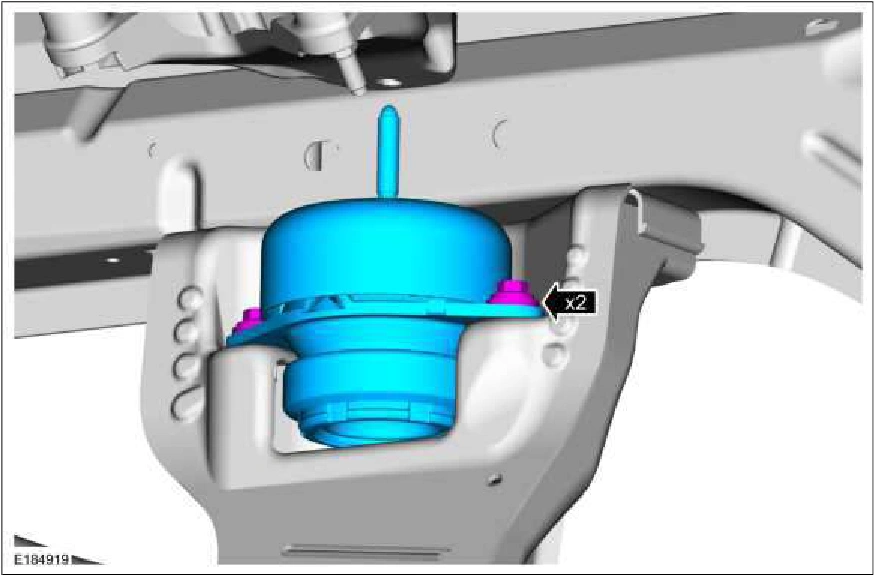

Engine Mount RH — original illustration 1, reference 241Original colors & callouts · Select to enlarge

Installation

1. Install the engine mount and bolts. Torque : 52 lb.ft (70 Nm)

Engine Mount RH — original illustration 2, reference 241Original colors & callouts · Select to enlarge

2. Lower the engine onto the engine mounts and remove the special tools Use Special Service Tool: 303-F072 Support Bar, Engine. , 303-050 (T70P-6000) Lifting Bracket, Engine.
