Engine Mount RH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 244 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine Mount RH — original illustration 1, reference 244Original colors & callouts · Select to enlarge

7. Install the cowl extension and fasteners. Torque : 26 lb.ft (35 Nm)

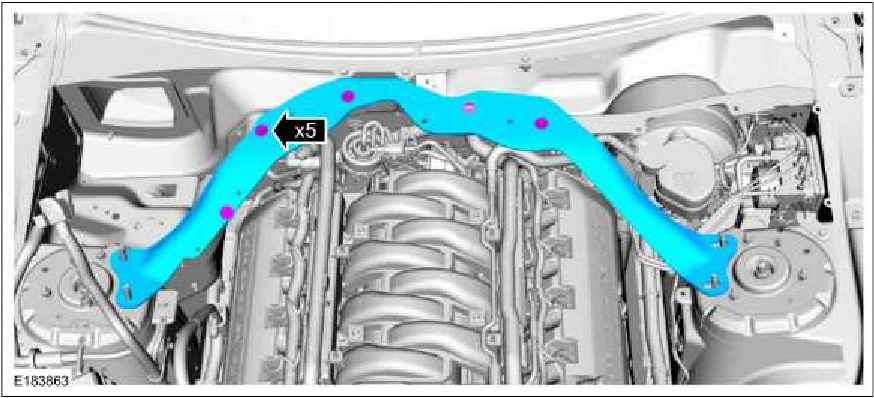

Engine Mount RH — original illustration 2, reference 244Original colors & callouts · Select to enlarge

8. Install the following items:

1. Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).

2. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

3. Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

9. Install the radiator top shield and the retainers.

Source reference 244
