Engine Mount RH — 2016 workshop reference 243

Engine Mount RH — original illustration 1, reference 243Original colors & callouts · Select to enlarge

5. Install the CMP sensor and the bolt. Torque : 89 lb.in (10 Nm) Connect the CMP sensor electrical connector and the wiring harness retainers.

Engine Mount RH — original illustration 2, reference 243Original colors & callouts · Select to enlarge

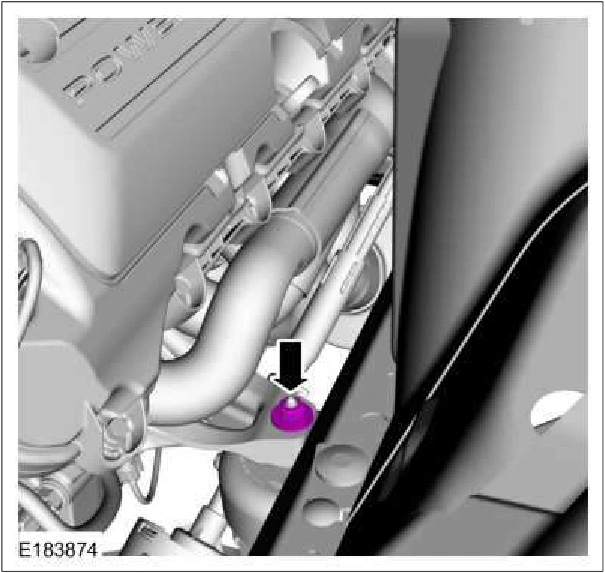

6. Install the battery heat shield and fasteners. Torque : 80 lb.in (9 Nm)
