2016 workshop · Engine

Engine Mount RH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 245 / 6,619HTML edition
← Chapter contentsProcedure contents

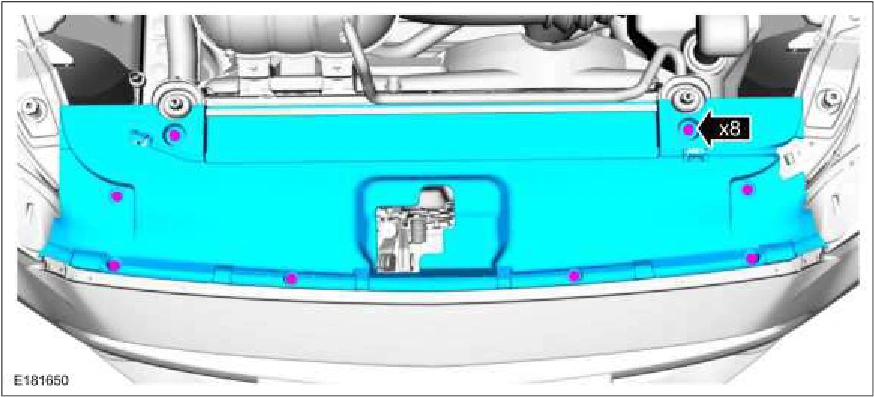

Engine Mount RH — original illustration 1, reference 245Original colors & callouts · Select to enlarge

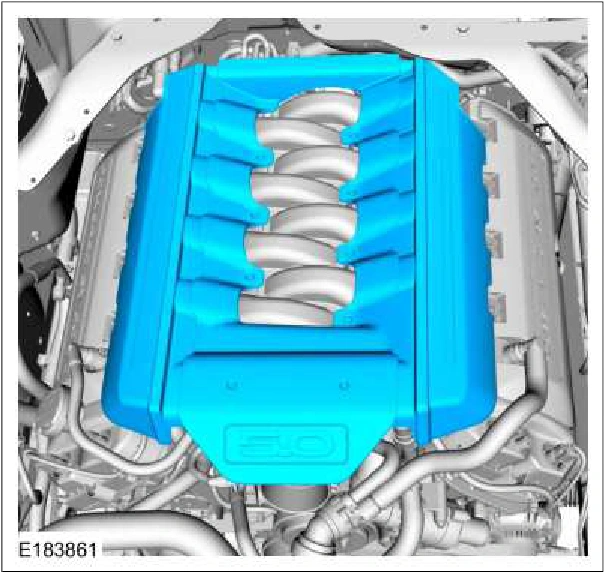

10. NOTE: The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover.

Install the engine appearance cover.

Engine Mount RH — original illustration 2, reference 245Original colors & callouts · Select to enlarge

11. If equipped, install the strut tower cross brace and nuts.

Torque : 41 lb.ft (55 Nm) Attach the wiring harness retainer.
