Front Lower Arm

204-01 Front Suspension 2016 Mustang

Removal and Installation Procedure revision date: 08/6/2015

Special Tool(s) / General Equipment

Front Lower Arm — original illustration 1, reference 2429Original colors & callouts · Select to enlarge	204-592 Separator, Lower Arm Ball Joint TKIT-2006C-FFMFLM TKIT-2006C-LM TKIT-2006C-ROW
Vehicle/Axle Stands

Removal

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

2. NOTICE: The front suspension height sensor must be disconnected from the lower control arm

prior to servicing suspension components or damage to the suspension height sensor and/or the vehicle dynamic suspension system may occur. The sensor will need to be recalibrated after reassembly.

NOTE: If equipped with dynamic suspension.

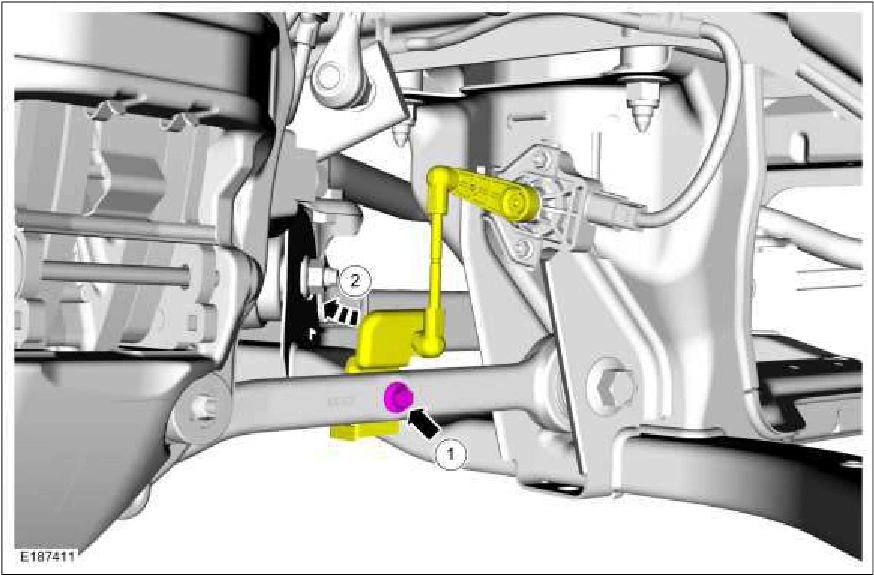

1. Remove the ride height sensor arm bracket bolt.

2. Position the ride height sensor arm bracket aside.

Front Lower Arm — original illustration 2, reference 2429Original colors & callouts · Select to enlarge

3. Remove and discard the front lower arm outboard nut.
