Front Lower Arm — 2016 workshop reference 2432

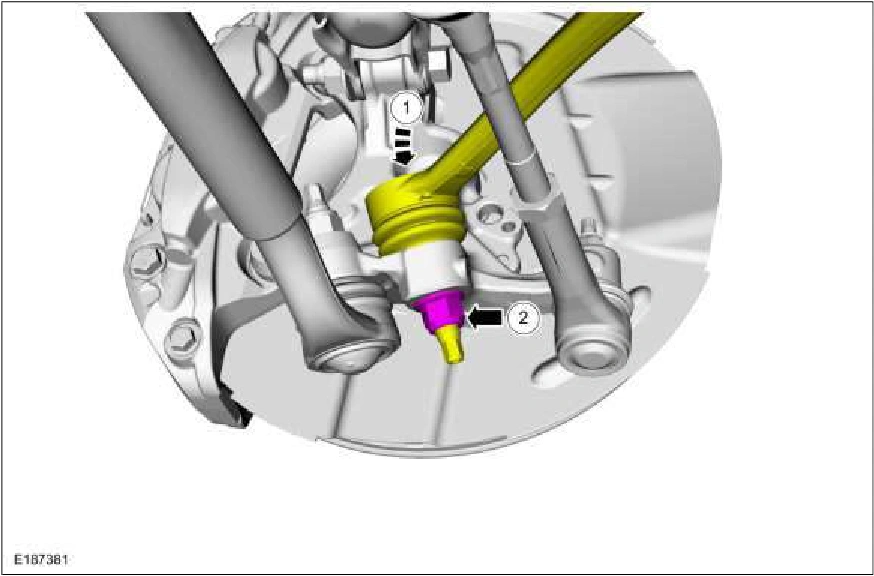

Front Lower Arm — original illustration 1, reference 2432Original colors & callouts · Select to enlarge

3. Support the suspension at curb height. Use the General Equipment: Vehicle/Axle Stands

Front Lower Arm — original illustration 2, reference 2432Original colors & callouts · Select to enlarge

4. NOTICE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight

of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

Tighten the front lower arm-to-frame bolt. Torque : 184 lb.ft (250 Nm)

Source reference 2432
