Front Lower Arm — 2016 workshop reference 2431

Front Lower Arm — original illustration 1, reference 2431Original colors & callouts · Select to enlarge

Installation

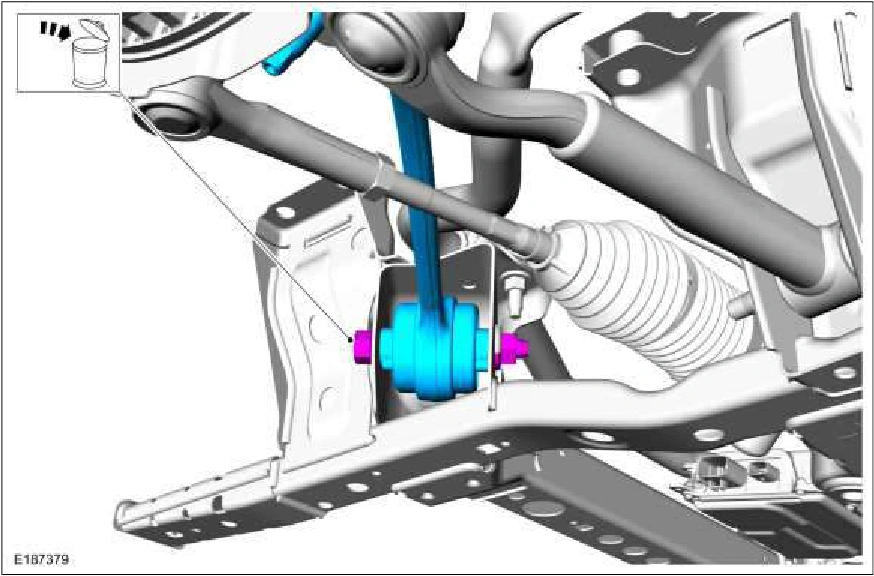

1. NOTE: Only tighten the bolt finger tight at this stage.

Position the front lower arm and install the new front lower arm-to-frame bolt.

Front Lower Arm — original illustration 2, reference 2431Original colors & callouts · Select to enlarge

Step 2

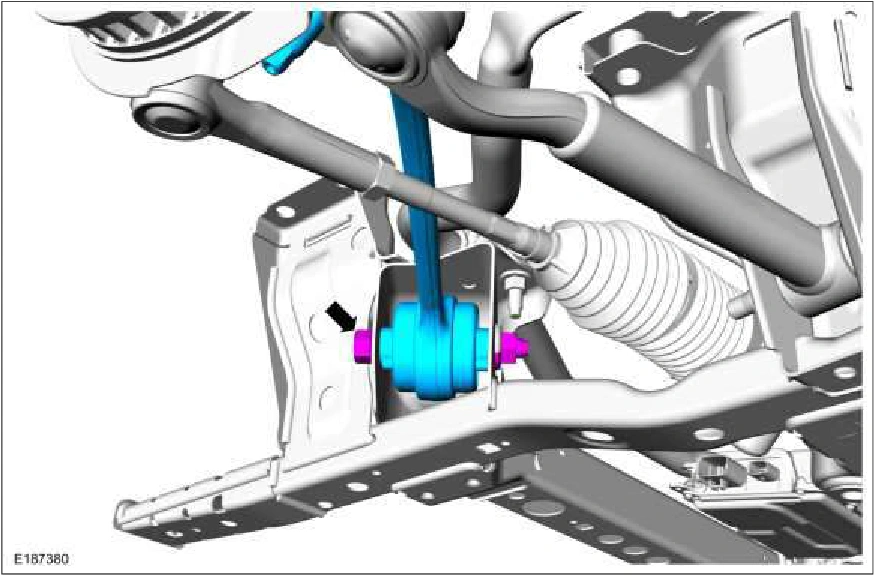

1. Attach the front lower arm to the wheel spindle.

2. Install the new front lower arm outboard nut. Torque : Non SVT: 85 lb.ft (115 Nm) SVT: 76 lb.ft (103 Nm)

Source reference 2431
