204-01 Front Suspension 2016 Mustang

Removal and Installation Procedure revision date: 08/6/2015

Front Wheel Bearing and Wheel Hub - Vehicles With: SVT Performance Package

Base Part Number: 1104

Removal

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1. Remove the brake disc. Refer to: Brake Disc (206-03 Front Disc Brake, Removal and Installation).

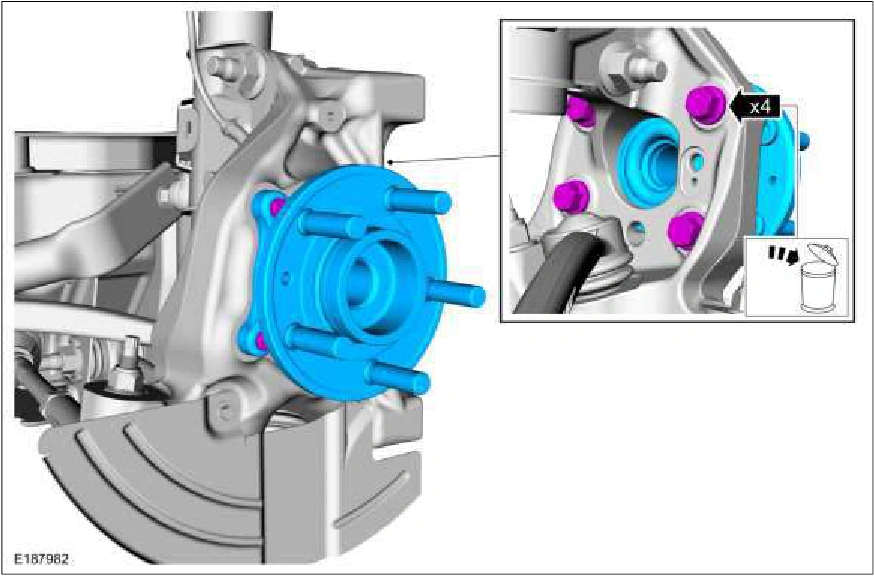

2. Remove and discard the 4 front wheel bearing and wheel hub bolts and remove the front wheel bearing and wheel hub.

Front Wheel Bearing and Wheel Hub - Vehicles With: SVT Performance Package — original illustration 1, reference 2460Original colors & callouts · Select to enlarge

Installation

1. NOTE: Tighten the front wheel bearing and wheel hub bolts in a cross pattern.

Install the front wheel bearing and wheel hub and install the 4 new front wheel bearing and wheel hub bolts. Torque : 98 lb.ft (133 Nm)
