Front Wheel Bearing and Wheel Hub

204-01 Front Suspension

2016 MustangReference 2,458 / 6,619HTML edition

← Chapter contents Procedure contents

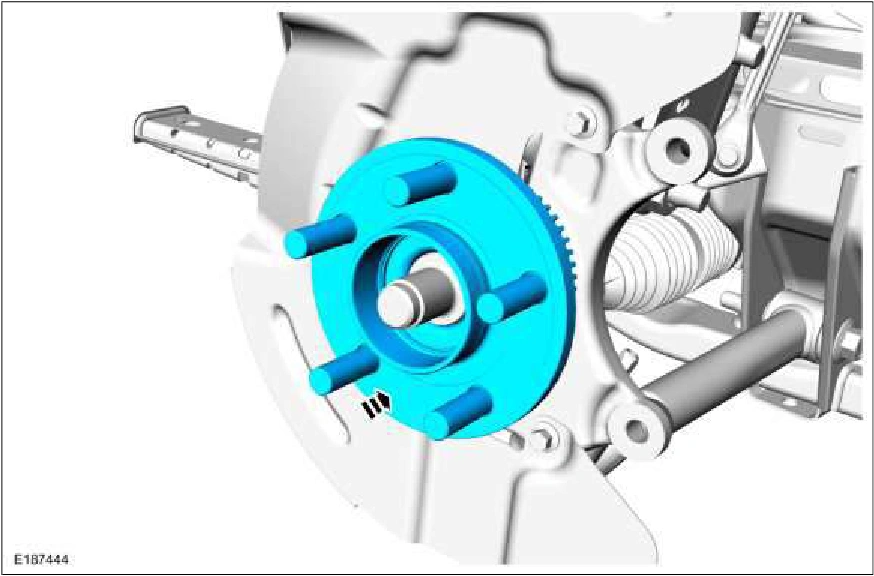

Front Wheel Bearing and Wheel Hub — original illustration 1, reference 2458Original colors & callouts · Select to enlarge

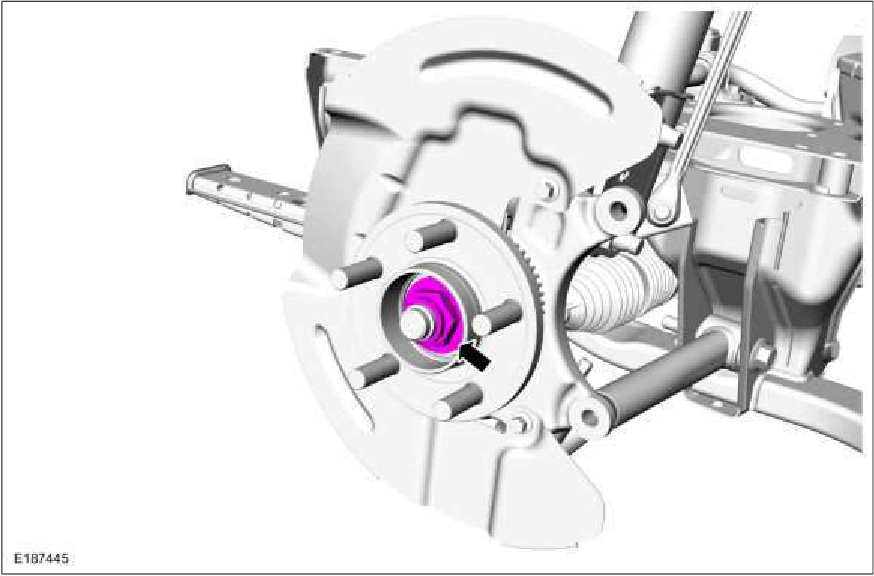

2. Install the new the wheel hub nut. Torque : 251 lb.ft (340 Nm)

Front Wheel Bearing and Wheel Hub — original illustration 2, reference 2458Original colors & callouts · Select to enlarge

3. Install the new wheel hub grease cap.

Source reference 2458
