204-01 Front Suspension 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Front Wheel Bearing and Wheel Hub

Base Part Number: 1104

Removal

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1. Remove the brake disc. Refer to: Brake Disc (206-03 Front Disc Brake, Removal and Installation).

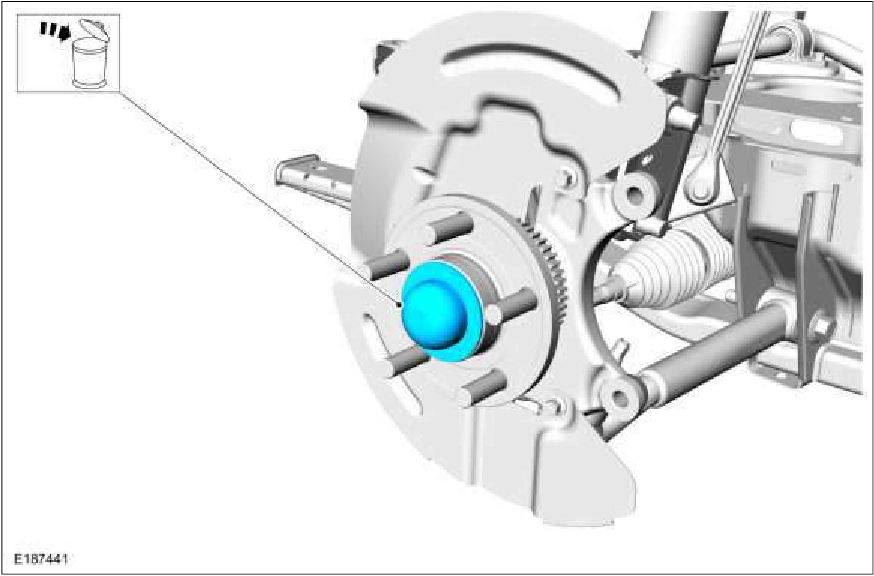

2. Remove and discard the wheel hub grease cap.

Front Wheel Bearing and Wheel Hub — original illustration 1, reference 2456Original colors & callouts · Select to enlarge

3. Remove and discard the wheel hub nut.
