Front Strut and Spring Assembly — 2016 workshop reference 2453

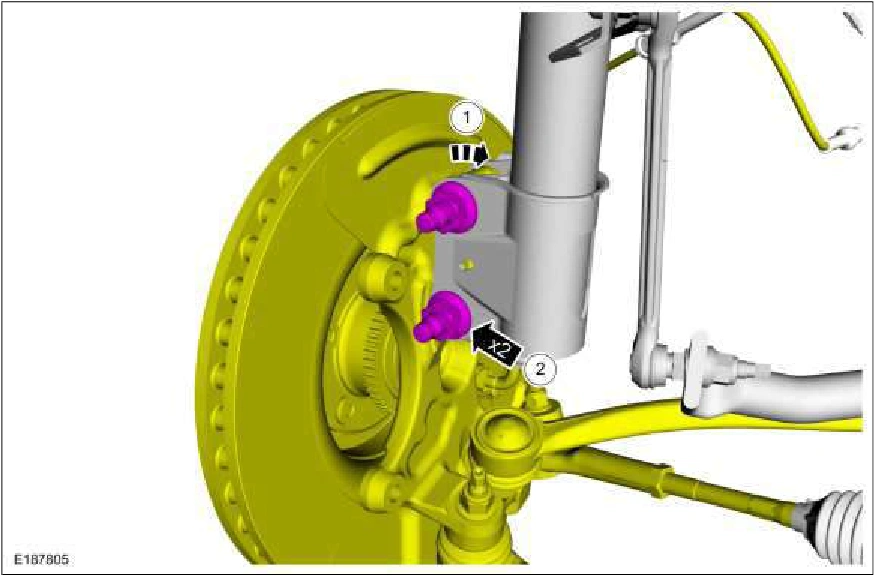

Front Strut and Spring Assembly — original illustration 1, reference 2453Original colors & callouts · Select to enlarge

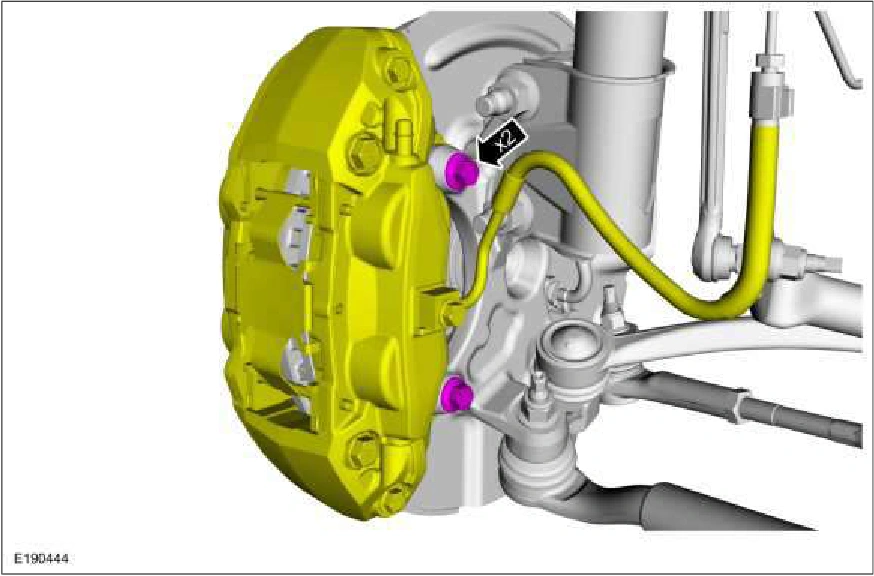

3. Position the brake caliper assembly and install the 2 new brake caliper anchor plate bolts. Torque : 85 lb.ft (115 Nm)

Front Strut and Spring Assembly — original illustration 2, reference 2453Original colors & callouts · Select to enlarge

Step 4

1. If equipped. Clip the brake sensor electrical connector and the 2 wire retainers to the strut.

2. If equipped with dynamic suspension. Connect the dynamic suspension strut wire harness connector.

3. If equipped. Connect the brake sensor electrical connector.
