Front Strut and Spring Assembly — 2016 workshop reference 2451

Front Strut and Spring Assembly — original illustration 1, reference 2451Original colors & callouts · Select to enlarge

Step 6

1. NOTE: Original strut-to-wheel spindle bolts are splined and may need to be driven out.

Remove and discard the 2 strut-to-wheel spindle bolts and nuts.

2. Separate the wheel spindle from the front strut and spring assembly.

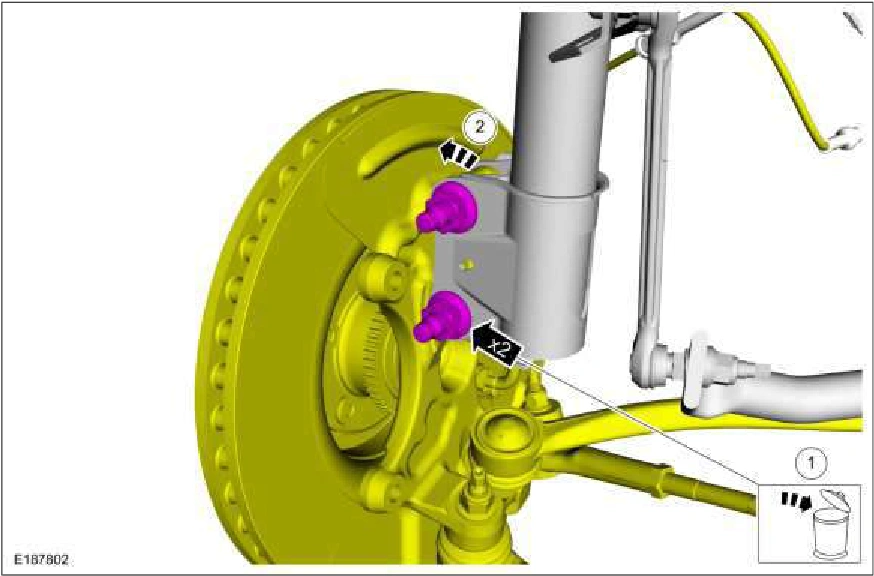

Front Strut and Spring Assembly — original illustration 2, reference 2451Original colors & callouts · Select to enlarge

Step 7

1. Remove and discard the 3 upper strut mount nuts.

2. Remove the front strut and spring assembly.

Source reference 2451
