Front Stabilizer Bar Link

204-01 Front Suspension 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Base Part Number: 3B438

Removal

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

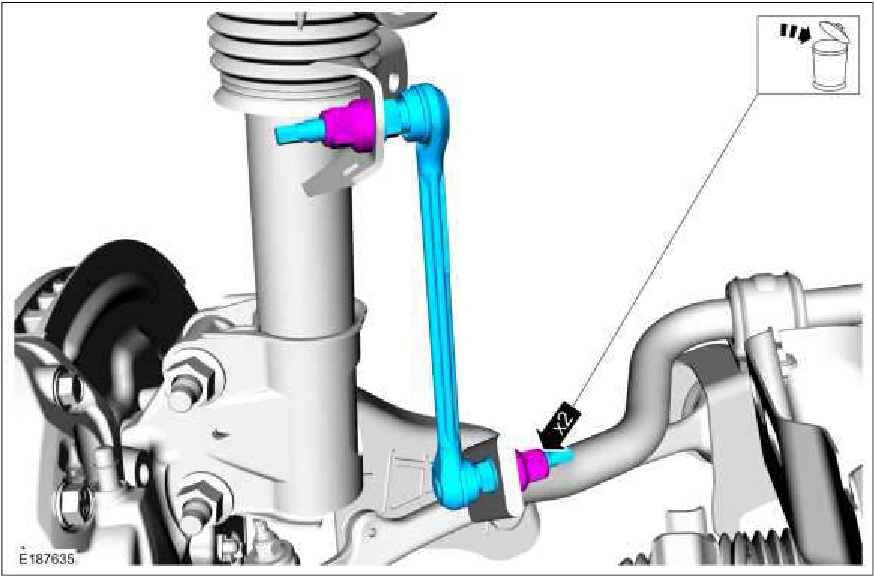

Remove and discard the 2 front stabilizer bar link nuts and remove the front stabilizer bar link. Torque : 85 lb.ft (115 Nm)

Front Stabilizer Bar Link — original illustration 1, reference 2448Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
