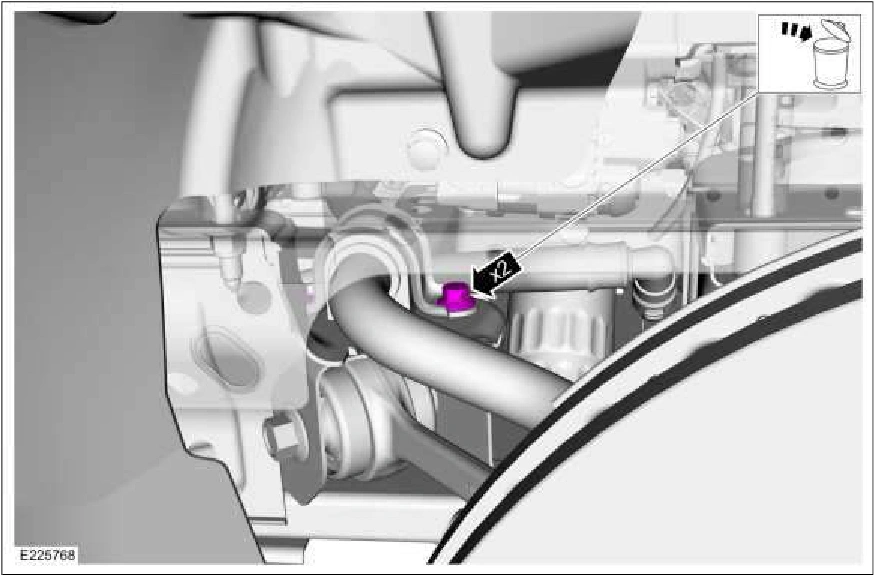

NOTE: On vehicles equipped with 5.0L engine, the rearward front stabilizer bar bushing bracket bolt is under the alternator and must be installed through the wheel opening.
3. NOTE: Vehicles equipped with 5.0L engine.
Install the LH wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
4. NOTE: All vehicles except vehicles equipped with 5.0L engine.
On both sides. Install the new front stabilizer bar bushing bracket bolts. Torque : 76 lb.ft (103 Nm)
