Front Stabilizer Bar Bushing

204-01 Front Suspension

2016 MustangReference 2,443 / 6,619HTML edition
← Chapter contentsProcedure contents

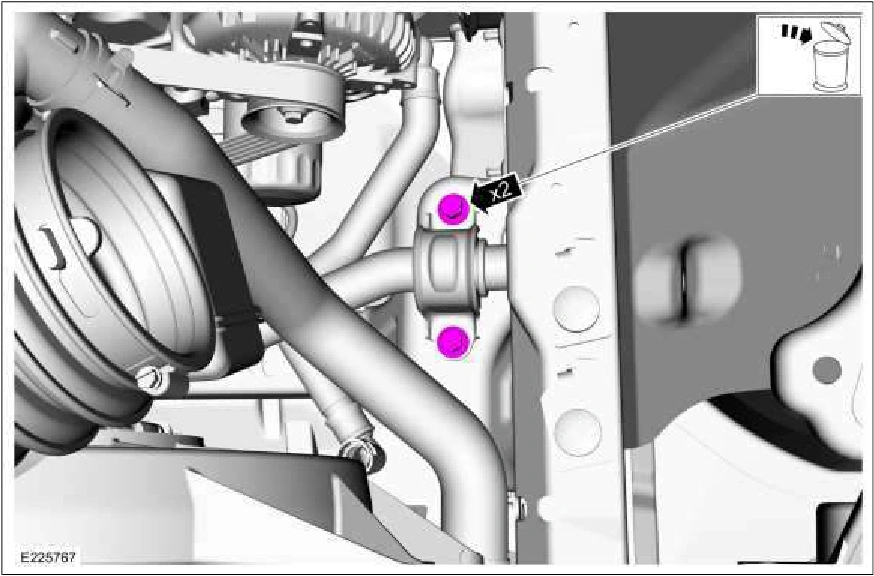

Front Stabilizer Bar Bushing — original illustration 1, reference 2443Original colors & callouts · Select to enlarge

4. NOTE: Vehicles equipped with 5.0L engine.

Remove the LH wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

5. NOTE: Vehicles equipped with 5.0L engine.

NOTE: On vehicles equipped with 5.0L engine, the rearward front stabilizer bar bushing bracket bolt is under the alternator and must be removed through the wheel opening.

On both sides. Remove and discard the front stabilizer bar bushing bracket bolts.

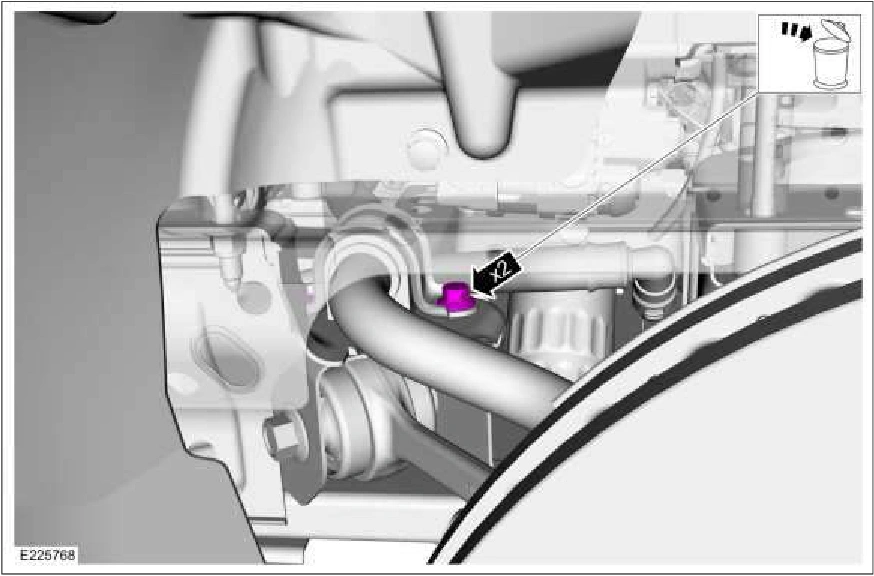

Front Stabilizer Bar Bushing — original illustration 2, reference 2443Original colors & callouts · Select to enlarge

6. NOTE: Non performance package vehicle front stabilizer bushing shown.
