Front Stabilizer Bar — 2016 workshop reference 2441

NOTE: Use the hex-holding feature to prevent the ball stud from turning while installing the stabilizer bar link nut.

On both sides.

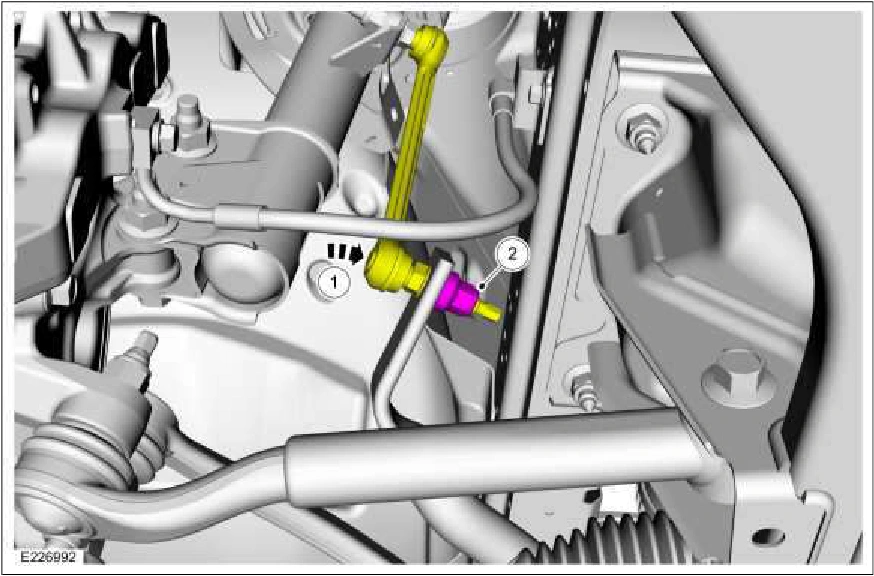

1. Position the front stabilizer bar link.

2. Install the new front stabilizer bar link lower nut. Torque : 85 lb.ft (115 Nm)

Front Stabilizer Bar — original illustration 1, reference 2441Original colors & callouts · Select to enlarge

8. Install the wheels and tires. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
