Front Stabilizer Bar — 2016 workshop reference 2438

Front Stabilizer Bar — original illustration 1, reference 2438Original colors & callouts · Select to enlarge

Installation

1. Install the stabilizer bar.

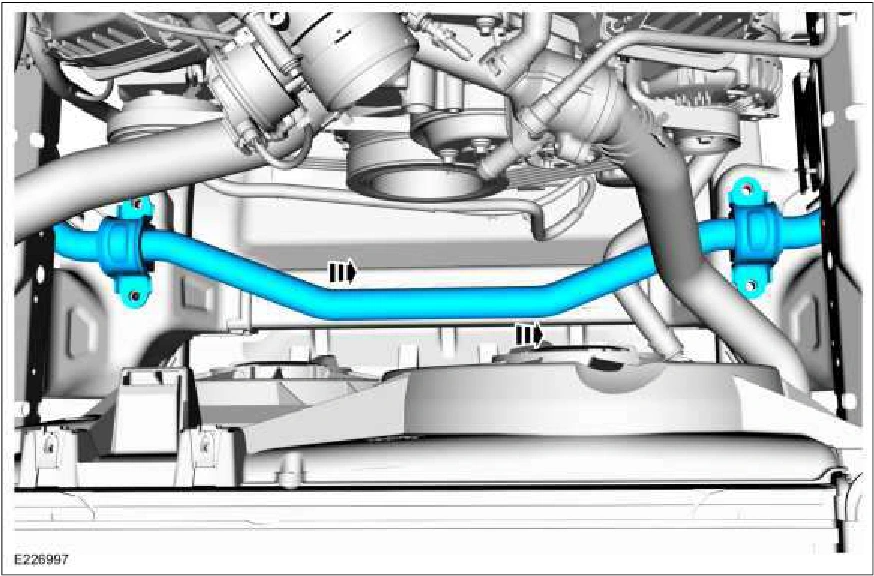

Front Stabilizer Bar — original illustration 2, reference 2438Original colors & callouts · Select to enlarge

2. NOTE: Shield located on LH side of vehicle.

If equipped. Position the splash shield up out of the way to gain access to the rearward front stabilizer bar bushing bracket bolt.

Source reference 2438
