Front Stabilizer Bar — 2016 workshop reference 2436

Installation).

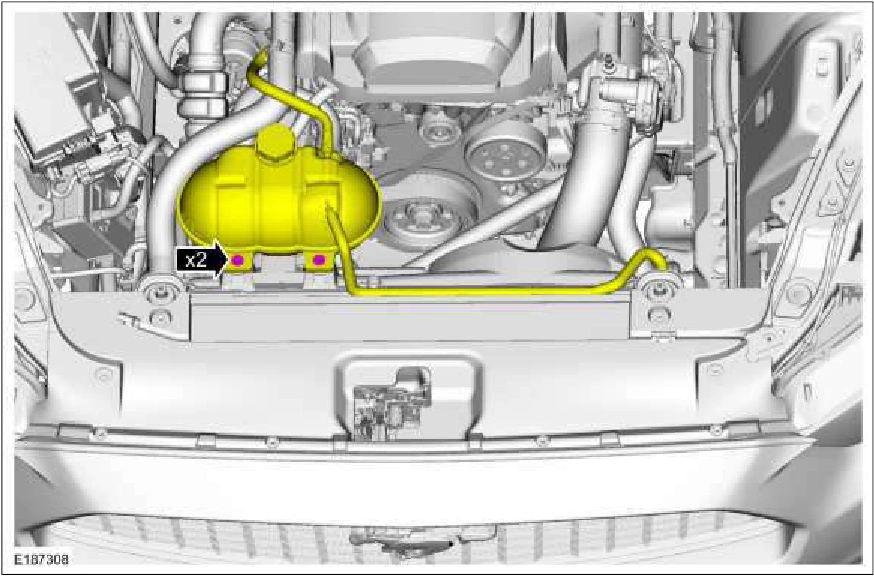

4. Remove the bolts and position the degas bottle aside.

Front Stabilizer Bar — original illustration 1, reference 2436Original colors & callouts · Select to enlarge

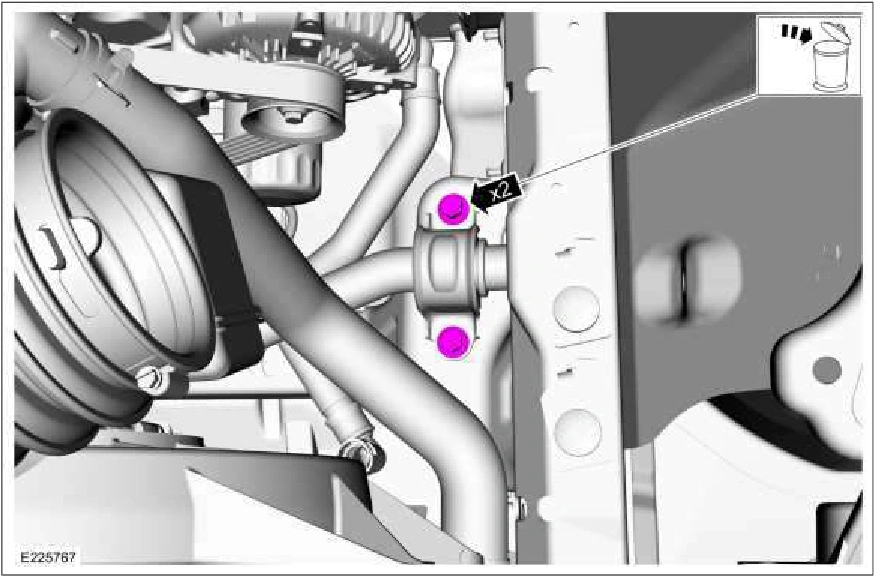

5. NOTE: All vehicles except vehicles equipped with 5.0L engine.

On both sides. Remove and discard the front stabilizer bar bushing bracket bolts.

Front Stabilizer Bar — original illustration 2, reference 2436Original colors & callouts · Select to enlarge

6. NOTE: Shield located on LH side of vehicle.

If equipped. Position the splash shield up out of the way to gain access to the rearward front stabilizer bar bushing bracket bolt.
