Front Stabilizer Bar — 2016 workshop reference 2437

Front Stabilizer Bar — original illustration 1, reference 2437Original colors & callouts · Select to enlarge

7. NOTE: Vehicles equipped with 5.0L engine.

NOTE: On vehicles equipped with 5.0L engine, the rearward front stabilizer bar bushing bracket bolt is under the alternator and must be removed through the wheel opening.

On both sides. Remove and discard the front stabilizer bar bushing bracket bolts.

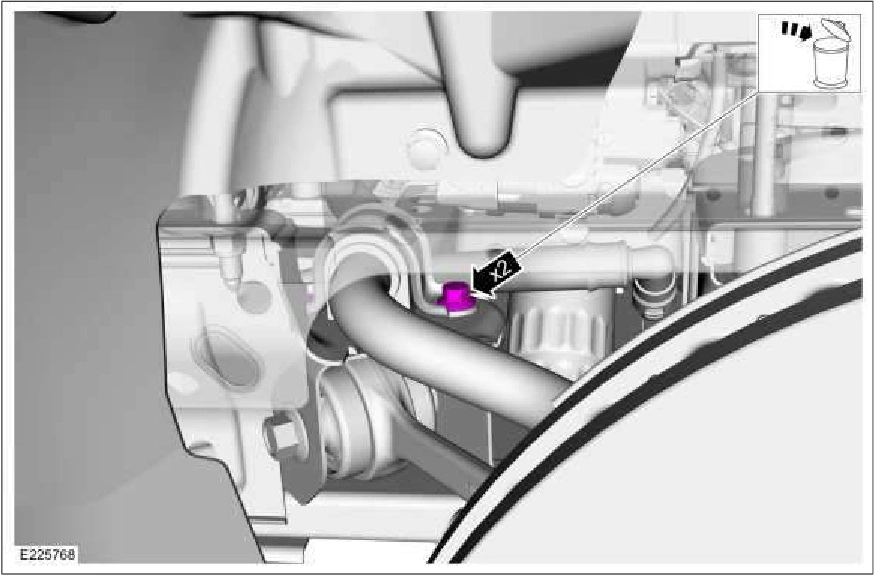

Front Stabilizer Bar — original illustration 2, reference 2437Original colors & callouts · Select to enlarge

8. Remove the stabilizer bar.
