Front Stabilizer Bar

204-01 Front Suspension

2016 MustangReference 2,439 / 6,619HTML edition
← Chapter contentsProcedure contents

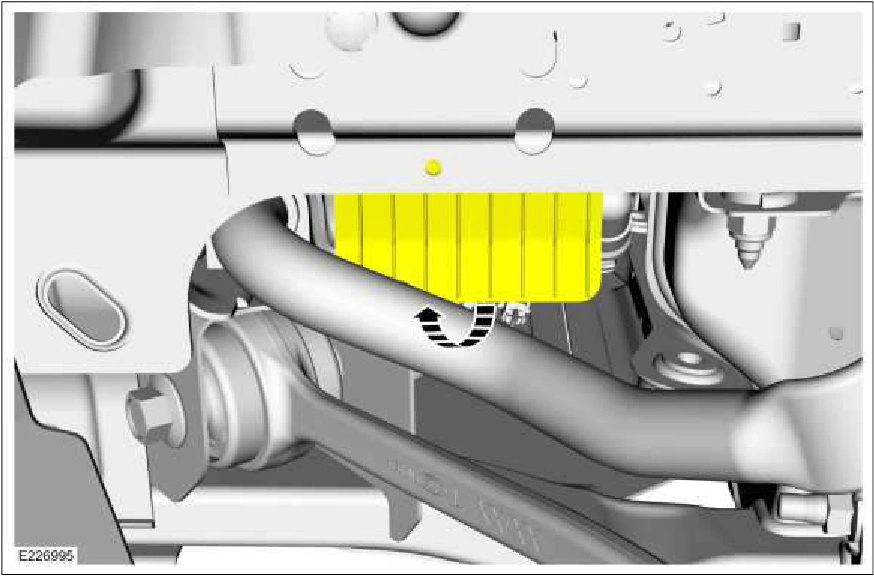

Front Stabilizer Bar — original illustration 1, reference 2439Original colors & callouts · Select to enlarge

3. NOTE: Vehicles equipped with 5.0L engine.

NOTE: On vehicles equipped with 5.0L engine, the rearward front stabilizer bar bushing bracket bolt is under the alternator and must be installed through the wheel opening.

On both sides. Install the new front stabilizer bar bushing bracket bolts. Torque : 76 lb.ft (103 Nm)

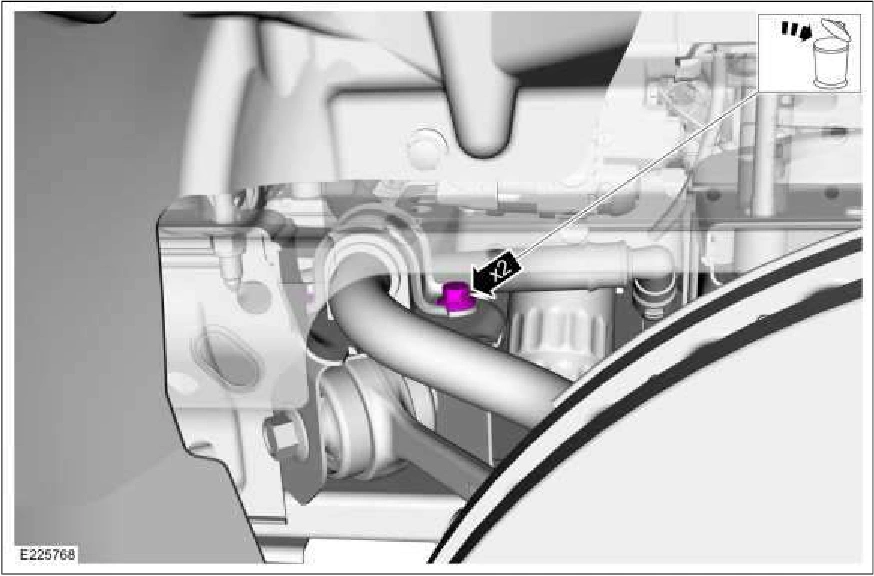

Front Stabilizer Bar — original illustration 2, reference 2439Original colors & callouts · Select to enlarge

4. NOTE: All vehicles except vehicles equipped with 5.0L engine.

On both sides. Install the new front stabilizer bar bushing bracket bolts. Torque : 76 lb.ft (103 Nm)
