Front Stabilizer Bar Bushing

204-01 Front Suspension 2016 Mustang

Removal and Installation Procedure revision date: 12/7/2015

Base Part Number: 5484

Removal

NOTE: Vehicles equipped with performance package, front stabilizer bushings are not serviceable separately. Replace the front stabilizer bar.

1. Remove the air cleaner. Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 2.3L EcoBoost (231kW/314PS), Removal and Installation). Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - 3.7L Duratec (227kW/301PS), Removal and Installation). Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation). Refer to: Air Cleaner (303-12D Intake Air Distribution and Filtering - 5.2L 32V Ti-VCT, Removal and Installation).

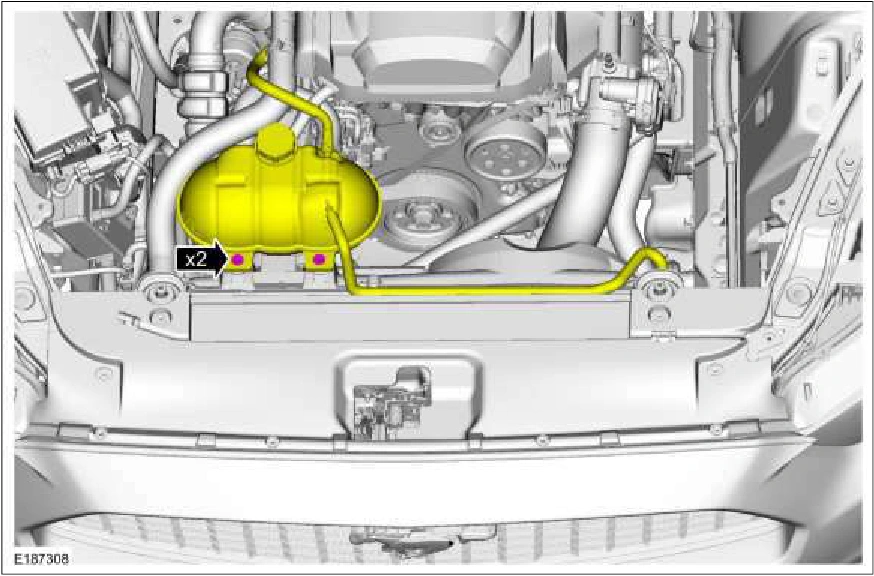

2. Remove the bolts and position the degas bottle aside.

Front Stabilizer Bar Bushing — original illustration 1, reference 2442Original colors & callouts · Select to enlarge

3. NOTE: All vehicles except vehicles equipped with 5.0L engine.

On both sides. Remove and discard the front stabilizer bar bushing bracket bolts.

Source reference 2442
