Front Stabilizer Bar Bushing — 2016 workshop reference 2444

1. Remove the front stabilizer bar bushing bracket.

2. Remove the front stabilizer bar bushing.

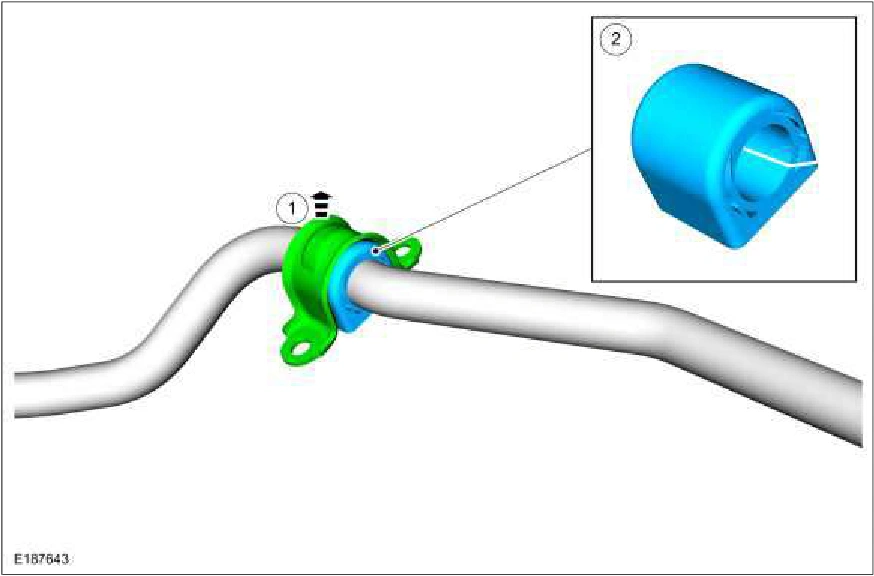

Front Stabilizer Bar Bushing — original illustration 1, reference 2444Original colors & callouts · Select to enlarge

Installation

1. NOTICE: Do not use any lubrication on the stabilizer bar or the bushings or damage to the

bushings may occur.

1. NOTE: Stabilizer bar bushings must be installed with slits facing the rear of the vehicle.

Install the front stabilizer bar bushing.

2. Install the front stabilizer bar bushing bracket.

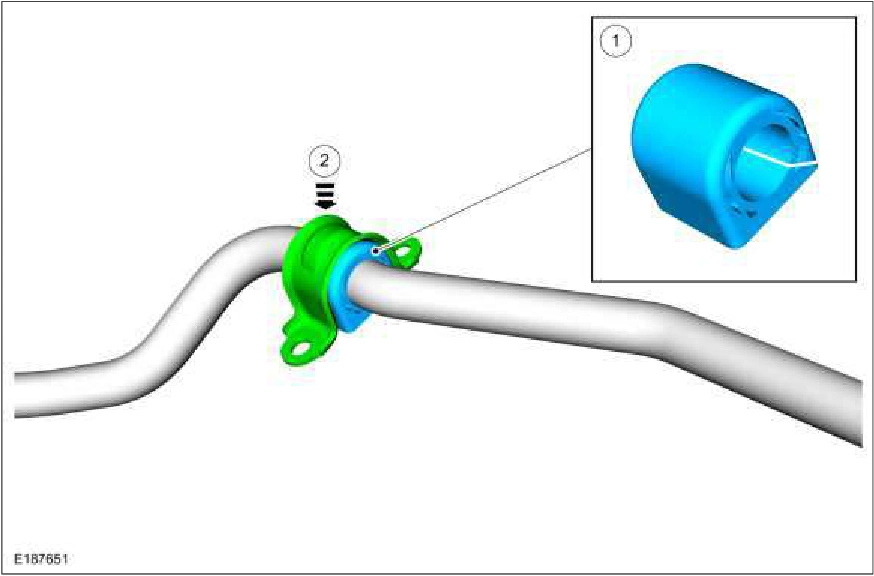

Front Stabilizer Bar Bushing — original illustration 2, reference 2444Original colors & callouts · Select to enlarge

2. NOTE: Vehicles equipped with 5.0L engine.
