Front Stabilizer Bar Bushing — 2016 workshop reference 2446

Front Stabilizer Bar Bushing — original illustration 1, reference 2446Original colors & callouts · Select to enlarge

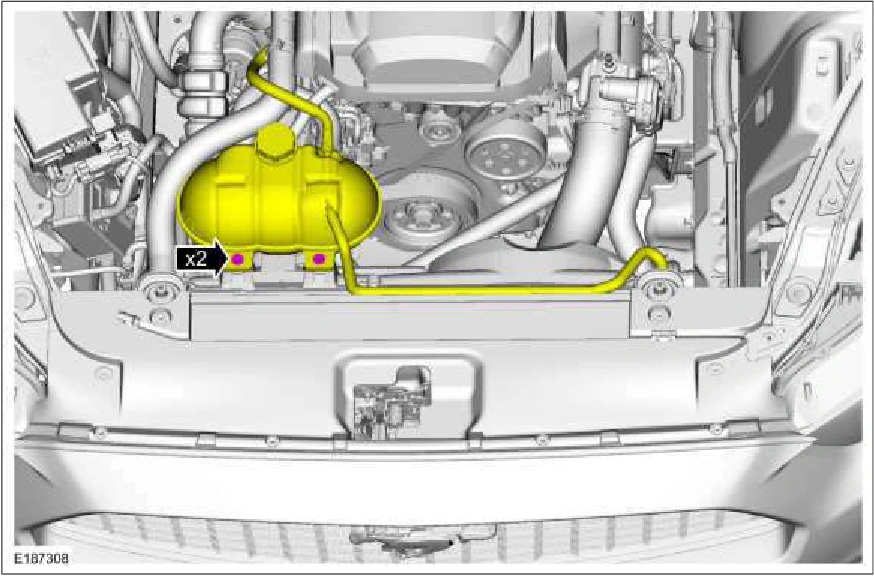

5. Position the degas bottle and install the bolts. Torque : 80 lb.in (9 Nm)

Front Stabilizer Bar Bushing — original illustration 2, reference 2446Original colors & callouts · Select to enlarge

6. Install the air cleaner. Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 2.3L EcoBoost (231kW/314PS), Removal and Installation). Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - 3.7L Duratec (227kW/301PS), Removal and Installation). Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation). Refer to: Air Cleaner (303-12D Intake Air Distribution and Filtering - 5.2L 32V Ti-VCT, Removal and Installation).
