Front Strut and Spring Assembly — 2016 workshop reference 2450

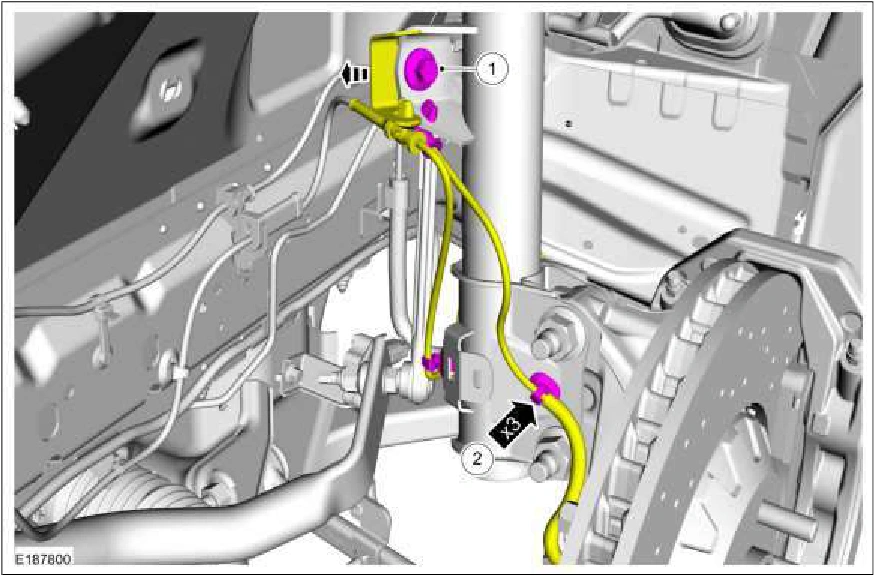

Front Strut and Spring Assembly — original illustration 1, reference 2450Original colors & callouts · Select to enlarge

Step 4

1. If equipped. Disconnect the brake sensor electrical connector.

2. If equipped with dynamic suspension. Disconnect the dynamic suspension strut wire harness connector.

3. If equipped. Unclip the brake sensor electrical connector and the 2 wire retainers from the strut.

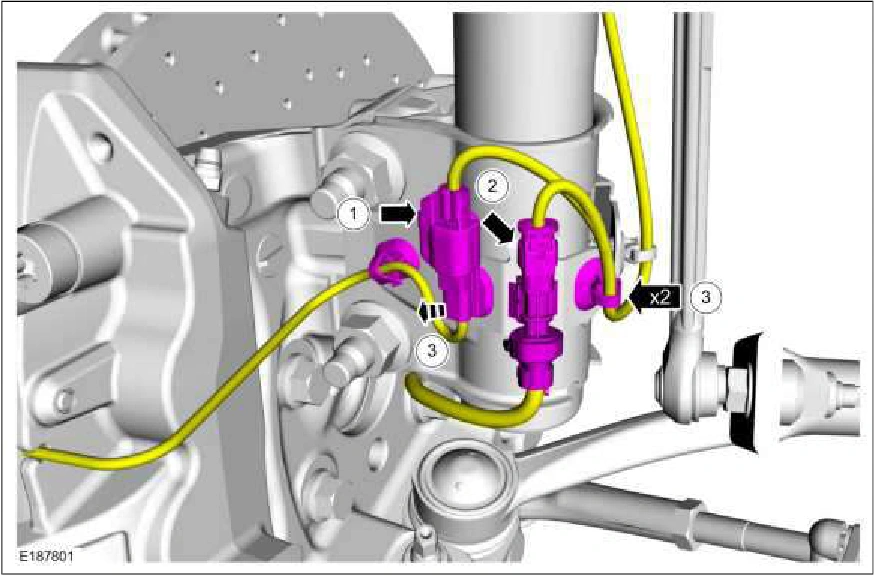

Front Strut and Spring Assembly — original illustration 2, reference 2450Original colors & callouts · Select to enlarge

5. NOTE: Base brakes shown, other applications similar.

Position aside the brake caliper assembly.

1. Remove and discard the 2 brake caliper anchor plate bolts.

2. Position aside the brake caliper assembly.

Source reference 2450
