Front Strut and Spring Assembly — 2016 workshop reference 2452

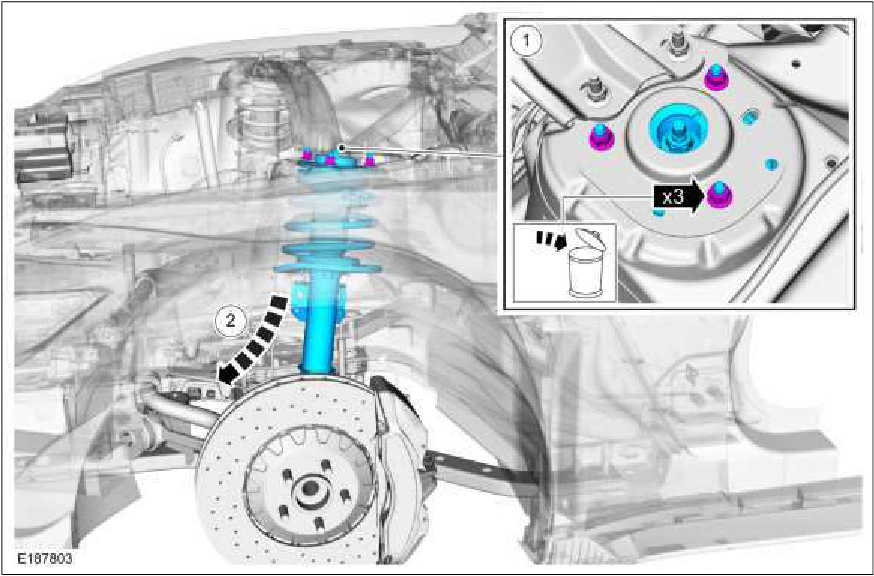

Front Strut and Spring Assembly — original illustration 1, reference 2452Original colors & callouts · Select to enlarge

Installation

Step 1

1. Install the front strut and spring assembly.

2. Install the 3 new upper strut mount nuts. Torque : 46 lb.ft (63 Nm)

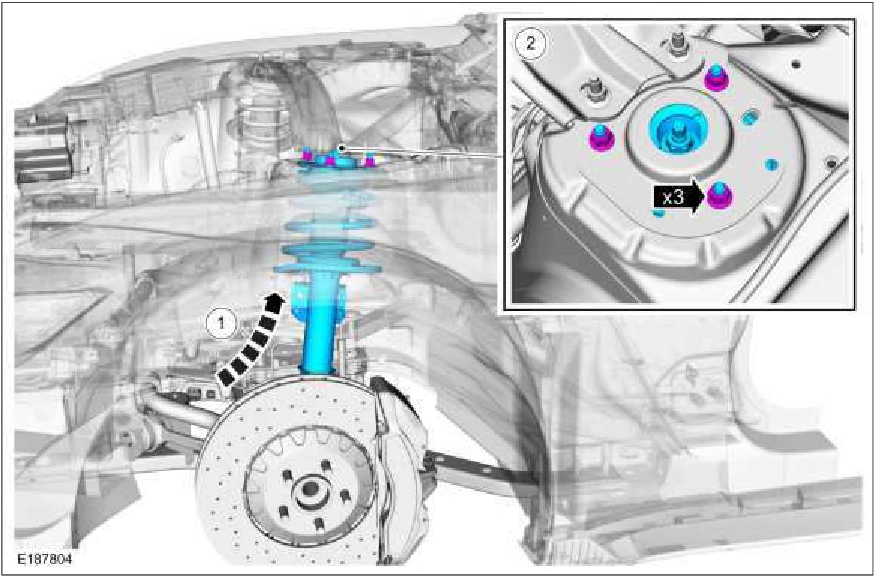

Front Strut and Spring Assembly — original illustration 2, reference 2452Original colors & callouts · Select to enlarge

Step 2

1. Attach the wheel spindle to the front strut and spring assembly.

2. Install the 2 new strut-to-wheel spindle bolts and nuts. Torque : 184 lb.ft (250 Nm)

Source reference 2452
