Front Strut and Spring Assembly — 2016 workshop reference 2454

Front Strut and Spring Assembly — original illustration 1, reference 2454Original colors & callouts · Select to enlarge

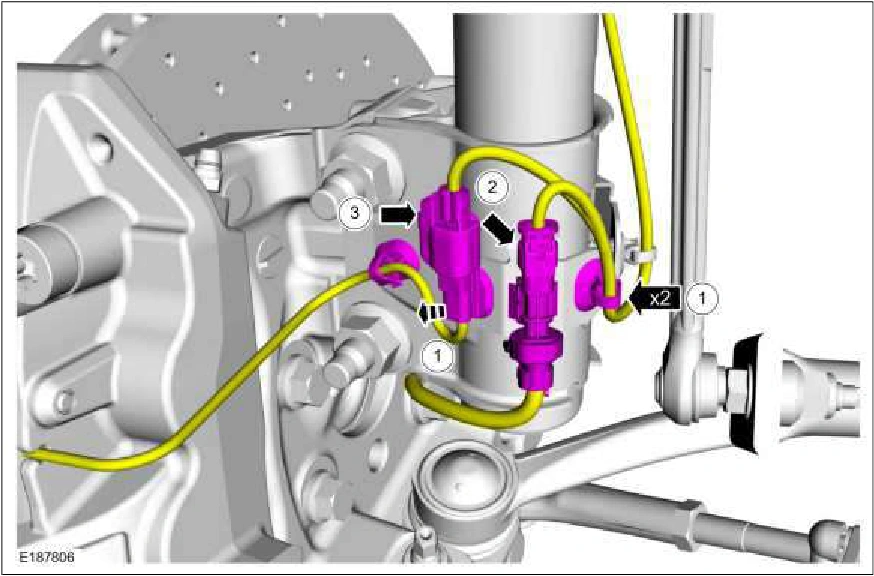

Step 5

1. Connect the 2 wheel speed sensor retainers and the 1 dynamic suspension strut wire harness retainer.

2. If equipped with dynamic suspension. Position the dynamic suspension strut wire harness bracket install the bolt. Torque : 46 lb.ft (63 Nm)

Front Strut and Spring Assembly — original illustration 2, reference 2454Original colors & callouts · Select to enlarge

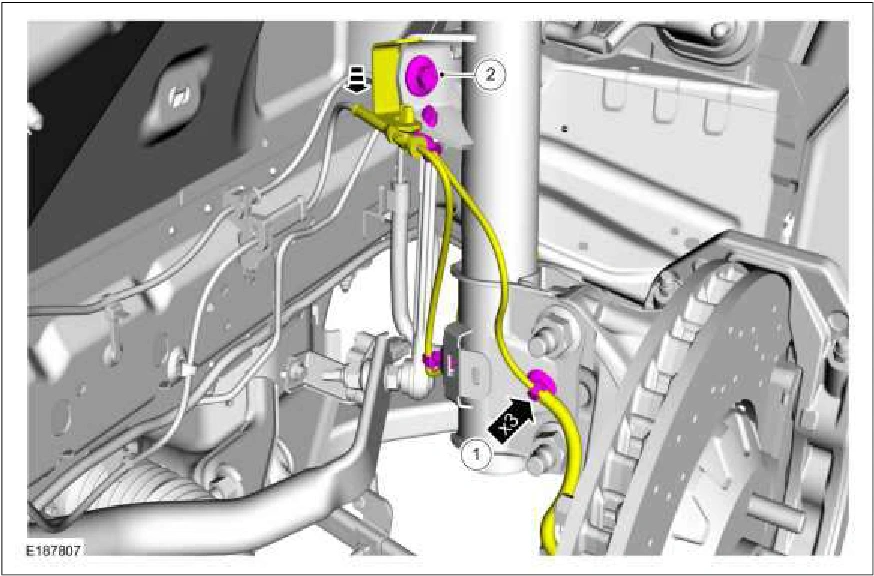

Step 6

1. Position the front stabilizer bar link.

2. NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or
