installing the stabilizer bar link nut.

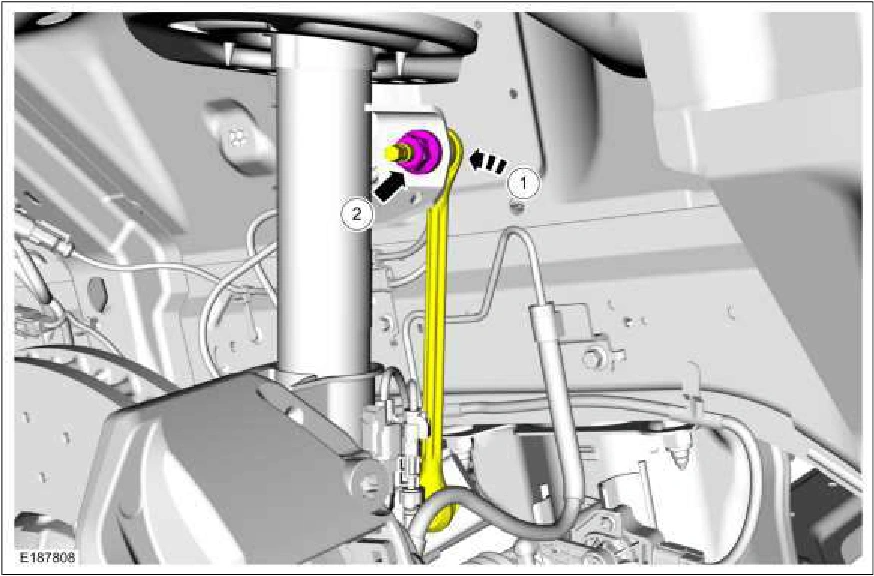

Install the front stabilizer bar link upper nut. Torque : 85 lb.ft (115 Nm)

Front Strut and Spring Assembly — original illustration 1, reference 2455Original colors & callouts · Select to enlarge

7. Install the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

8. Check and if necessary adjust front camber. Refer to: Front Camber Adjustment (204-00 Suspension System - General Information, General Procedures).
