Rear Lower Arm

204-01 Front Suspension

2016 MustangReference 2,463 / 6,619HTML edition
← Chapter contentsProcedure contents

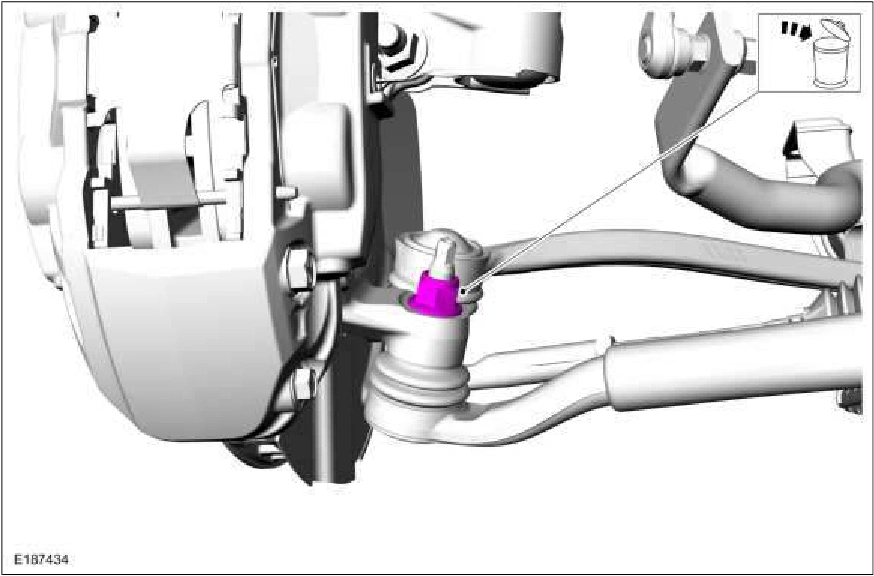

Rear Lower Arm — original illustration 1, reference 2463Original colors & callouts · Select to enlarge

4. NOTICE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle.

Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.

NOTICE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

Separate the rear lower arm from the wheel spindle. Use Special Service Tool: 204-592 Separator, Lower Arm Ball Joint.

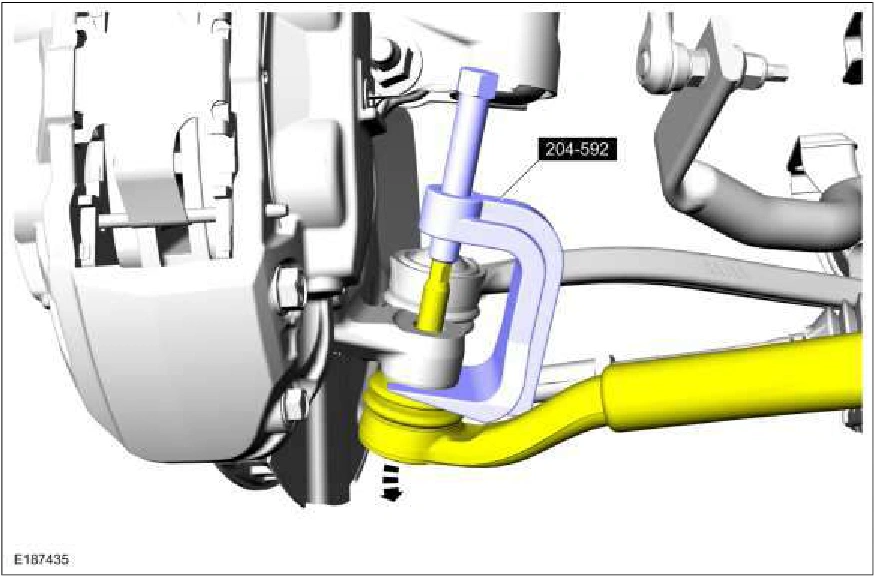

Rear Lower Arm — original illustration 2, reference 2463Original colors & callouts · Select to enlarge

5. Remove and discard the rear lower arm-to-frame bolt and remove the rear lower arm.

Source reference 2463
