Rear Lower Arm — 2016 workshop reference 2464

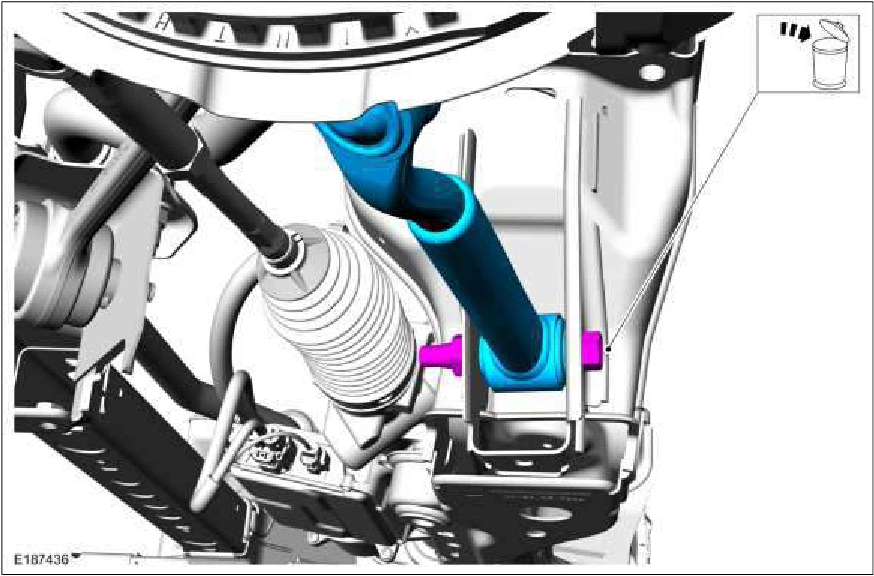

Rear Lower Arm — original illustration 1, reference 2464Original colors & callouts · Select to enlarge

Installation

1. NOTE: Only tighten the bolt finger tight at this stage.

Position the rear lower arm and install the new rear lower arm-to-frame bolt.

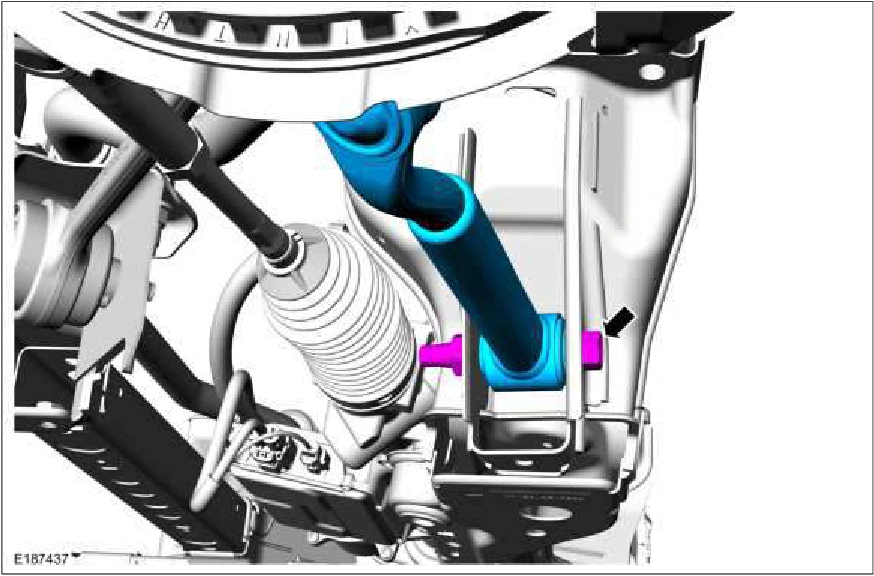

Rear Lower Arm — original illustration 2, reference 2464Original colors & callouts · Select to enlarge

Step 2

1. Attach the rear lower arm to the wheel spindle.

2. Install the new rear lower arm outboard nut. Torque : Non SVT: 85 lb.ft (115 Nm) SVT: 76 lb.ft (103 Nm)
