Rear Lower Arm

204-01 Front Suspension

2016 MustangReference 2,466 / 6,619HTML edition
← Chapter contentsProcedure contents

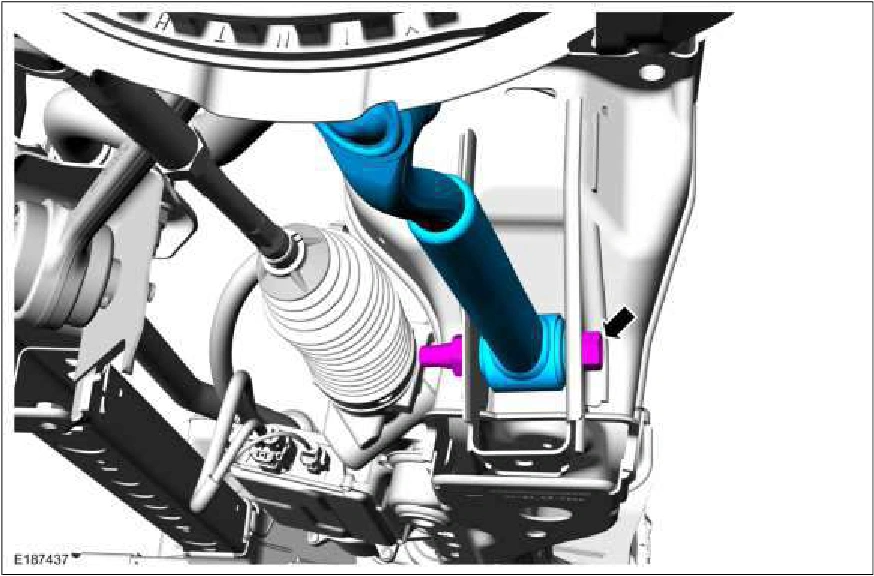

Rear Lower Arm — original illustration 1, reference 2466Original colors & callouts · Select to enlarge

5. NOTE: If equipped with dynamic suspension.

1. Position the ride height sensor arm bracket.

2. Install the ride height sensor arm bracket bolt. Torque : 177 lb.in (20 Nm)

Rear Lower Arm — original illustration 2, reference 2466Original colors & callouts · Select to enlarge

6. Install the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

7. Check and if necessary adjust front toe. Refer to: Front Toe Adjustment (204-00 Suspension System - General Information, General Procedures).

8. If equipped with dynamic suspension, calibrate the suspension system. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.

Source reference 2466
