Wheel Knuckle - Vehicles With: SVT Performance Package — 2016 workshop reference 2469

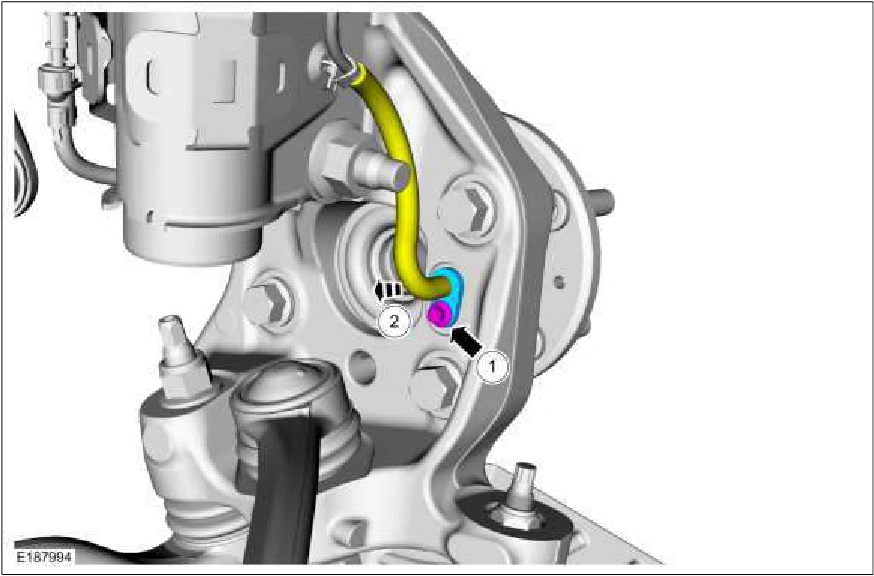

Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 1, reference 2469Original colors & callouts · Select to enlarge

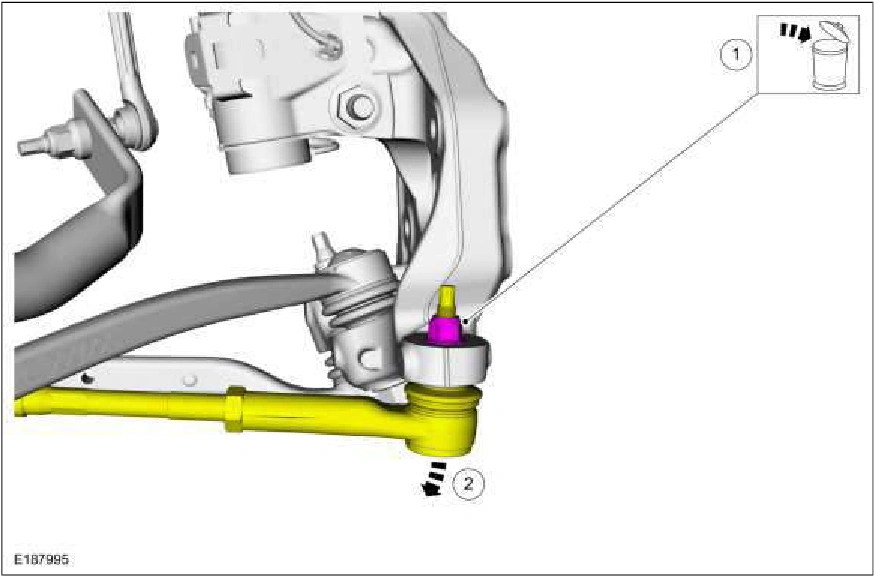

5. NOTICE: Do not use a hammer to separate the outer tie-rod end from the wheel knuckle or damage

to the wheel knuckle may result.

NOTICE: Use care when installing the tie rod separator or damage to the outer tie-rod end boot may occur.

1. Remove and discard the tie rod end nut.

2. Disconnect the tie rod end from the wheel knuckle. Use the General Equipment: Tie Rod End Remover

Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 2, reference 2469Original colors & callouts · Select to enlarge

6. NOTICE: The front suspension height sensor must be disconnected from the lower control arm

prior to servicing suspension components or damage to the suspension height sensor and/or the vehicle dynamic suspension system may occur. The sensor will need to be recalibrated after reassembly.
