Wheel Knuckle - Vehicles With: SVT Performance Package — 2016 workshop reference 2470

NOTE: If equipped with dynamic suspension.

1. Remove the ride height sensor arm bracket bolt.

2. Position the ride height sensor arm bracket aside.

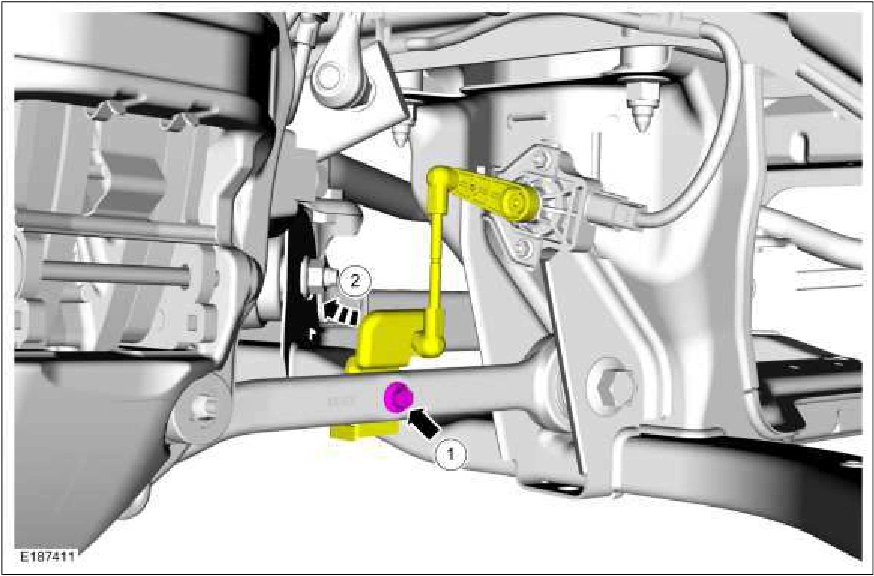

Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 1, reference 2470Original colors & callouts · Select to enlarge

7. Remove and discard the front lower arm outboard nut.

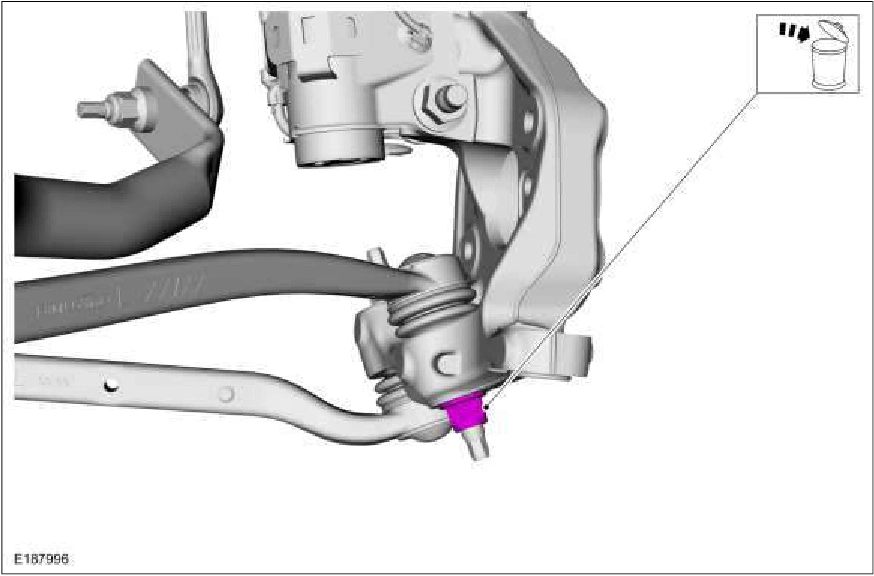

Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 2, reference 2470Original colors & callouts · Select to enlarge

8. NOTICE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle.

Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.

NOTICE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

Source reference 2470
