Wheel Knuckle - Vehicles With: SVT Performance Package — 2016 workshop reference 2471

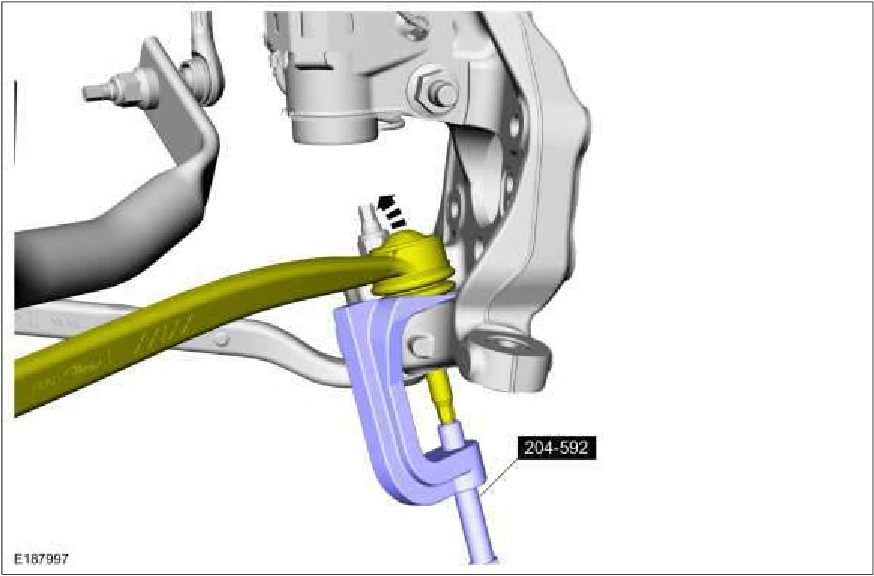

Separate the front lower arm from the wheel knuckle. Use Special Service Tool: 204-592 Separator, Lower Arm Ball Joint.

Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 1, reference 2471Original colors & callouts · Select to enlarge

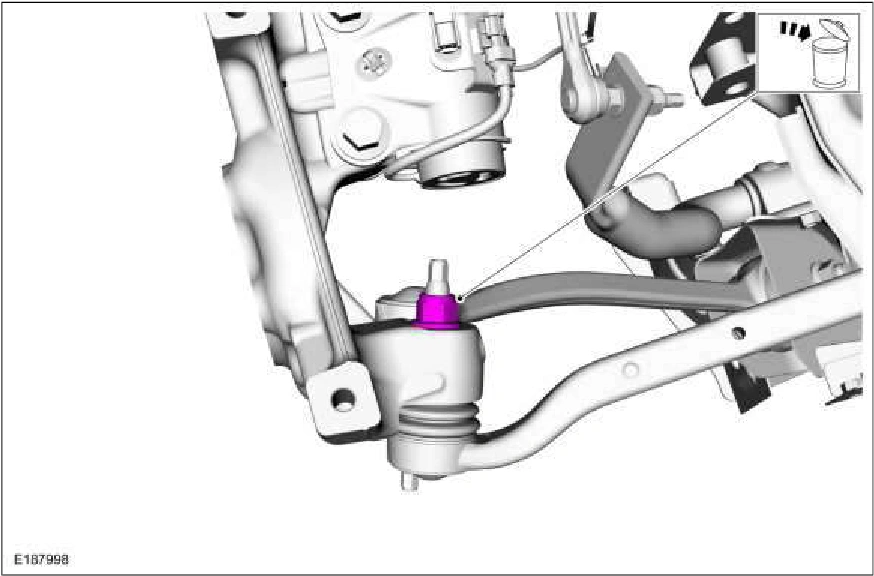

9. Remove and discard the rear lower arm outboard nut.

Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 2, reference 2471Original colors & callouts · Select to enlarge

10. NOTICE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle.

Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.

NOTICE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

Separate the rear lower arm from the wheel knuckle. Use Special Service Tool: 204-592 Separator, Lower Arm Ball Joint.
