Wheel Knuckle - Vehicles With: SVT Performance Package — 2016 workshop reference 2474

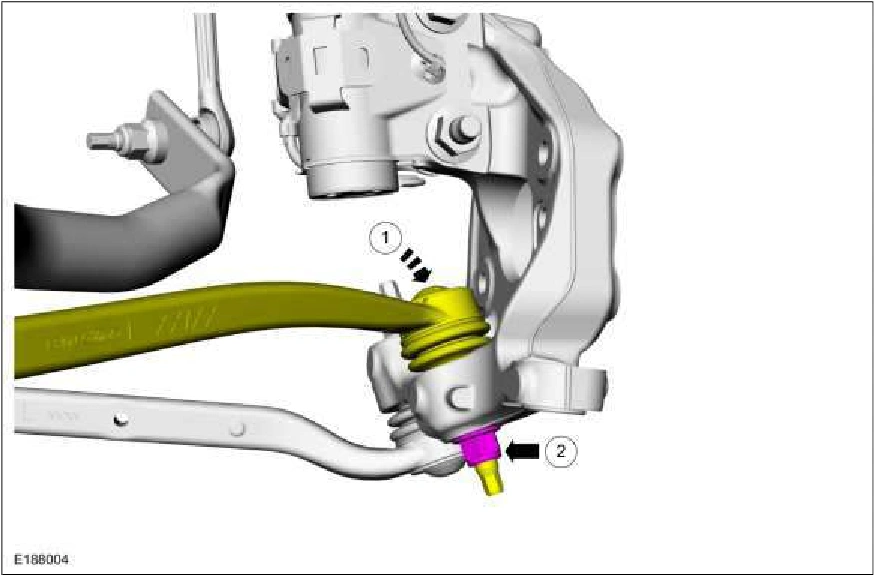

Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 1, reference 2474Original colors & callouts · Select to enlarge

4. NOTE: If equipped with dynamic suspension.

1. Position the ride height sensor arm bracket.

2. Install the ride height sensor arm bracket bolt. Torque : 177 lb.in (20 Nm)

Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 2, reference 2474Original colors & callouts · Select to enlarge

Step 5

1. Attach the tie rod end to the wheel knuckle.

2. Install the new tie rod end nut. Torque : 30 lb.ft (40 Nm)
