Wheel Knuckle - Vehicles With: SVT Performance Package — 2016 workshop reference 2475

Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 1, reference 2475Original colors & callouts · Select to enlarge

Step 6

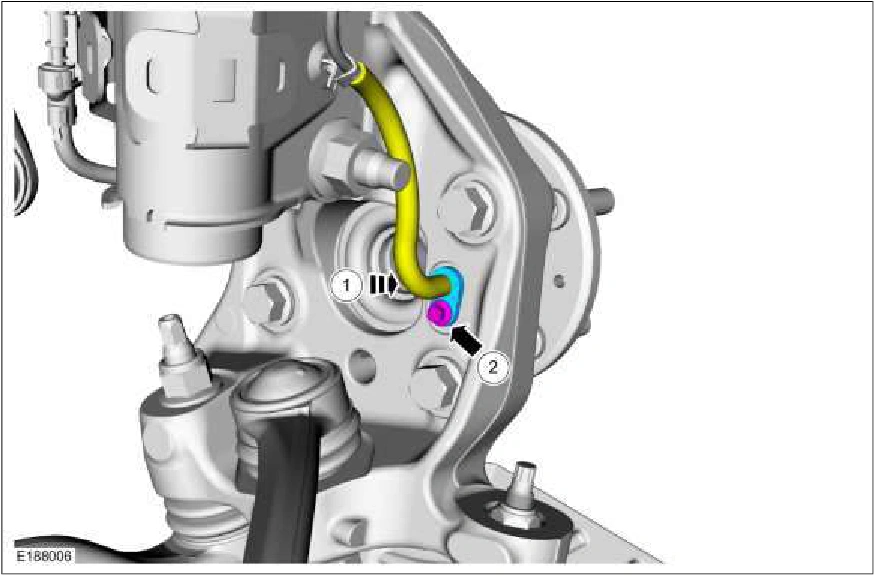

1. Position the front wheel speed sensor.

2. Install the front wheel speed sensor bolt. Torque : 133 lb.in (15 Nm)

Wheel Knuckle - Vehicles With: SVT Performance Package — original illustration 2, reference 2475Original colors & callouts · Select to enlarge

7. Install the brake disc shield. Refer to: Brake Disc Shield (206-03 Front Disc Brake, Removal and Installation).

8. Install the front wheel bearing and hub assembly. Refer to: Front Wheel Bearing and Wheel Hub - Vehicles With: SVT Performance Package (204-01 Front Suspension, Removal and Installation).

9. Connect the battery ground cable. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
