Wheel Spindle — 2016 workshop reference 2478

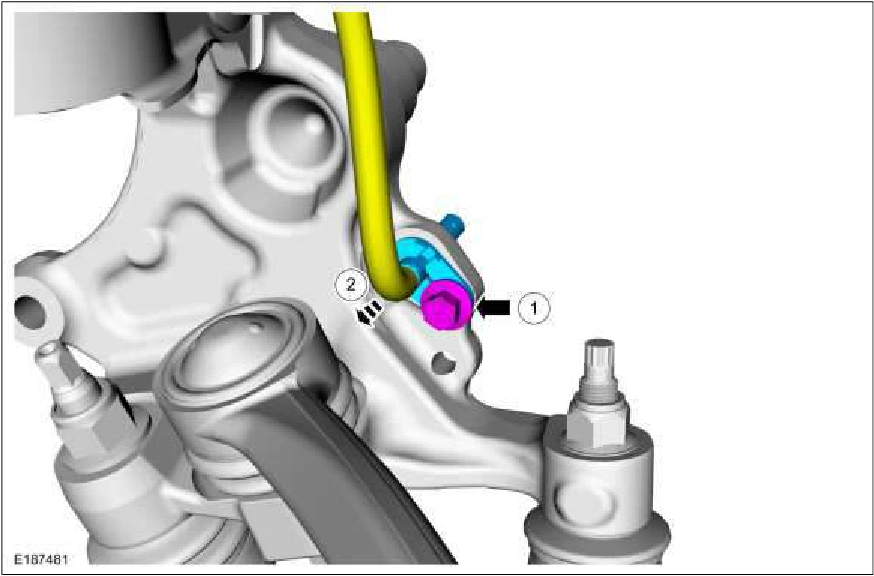

Wheel Spindle — original illustration 1, reference 2478Original colors & callouts · Select to enlarge

5. NOTICE: Do not use a hammer to separate the outer tie-rod end from the wheel spindle or damage

to the wheel spindle may result.

NOTICE: Use care when installing the tie rod separator or damage to the outer tie-rod end boot may occur.

1. Remove and discard the tie rod end nut.

2. Disconnect the tie rod end from the wheel spindle. Use the General Equipment: Tie Rod End Remover

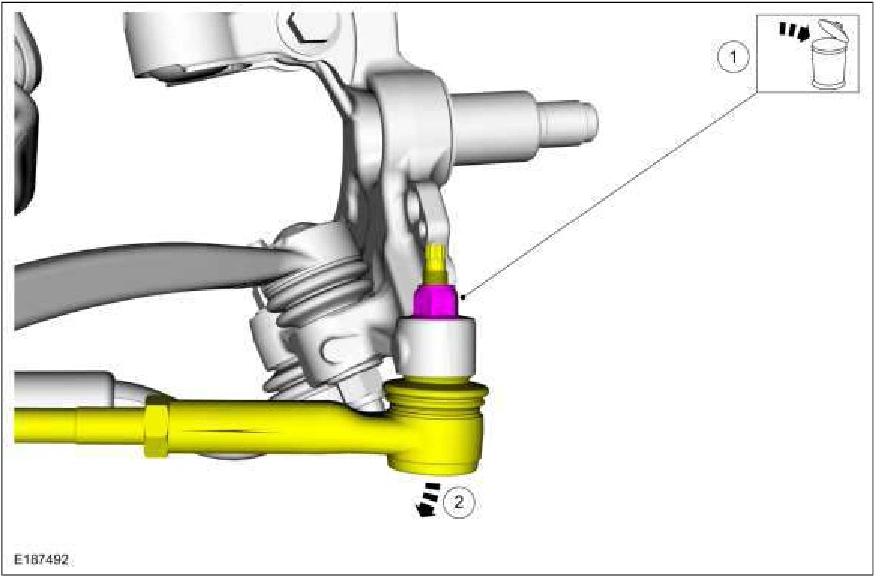

Wheel Spindle — original illustration 2, reference 2478Original colors & callouts · Select to enlarge

6. Remove and discard the front lower arm outboard nut.

Source reference 2478
