Wheel Spindle — 2016 workshop reference 2481

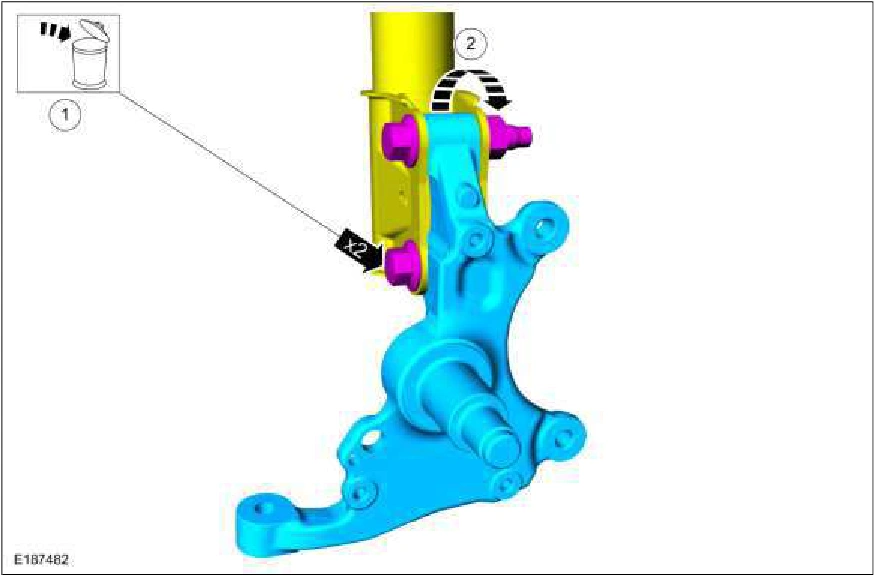

Wheel Spindle — original illustration 1, reference 2481Original colors & callouts · Select to enlarge

Installation

Step 1

1. Position the wheel spindle.

2. Install the 2 new strut-to-wheel spindle bolts and nuts. Torque : 184 lb.ft (250 Nm)

Wheel Spindle — original illustration 2, reference 2481Original colors & callouts · Select to enlarge

Step 2

1. Attach the rear lower arm to the wheel spindle.

2. Install the new rear lower arm outboard nut. Torque : 85 lb.ft (115 Nm)

Source reference 2481

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
