Wheel Spindle — 2016 workshop reference 2482

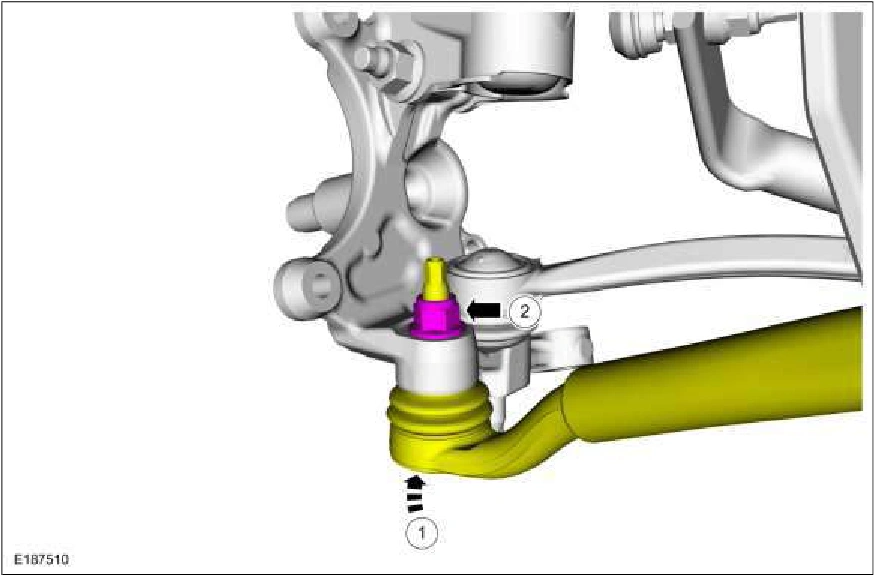

Wheel Spindle — original illustration 1, reference 2482Original colors & callouts · Select to enlarge

Step 3

1. Attach the front lower arm to the wheel spindle.

2. Install the new front lower arm outboard nut. Torque : 85 lb.ft (115 Nm)

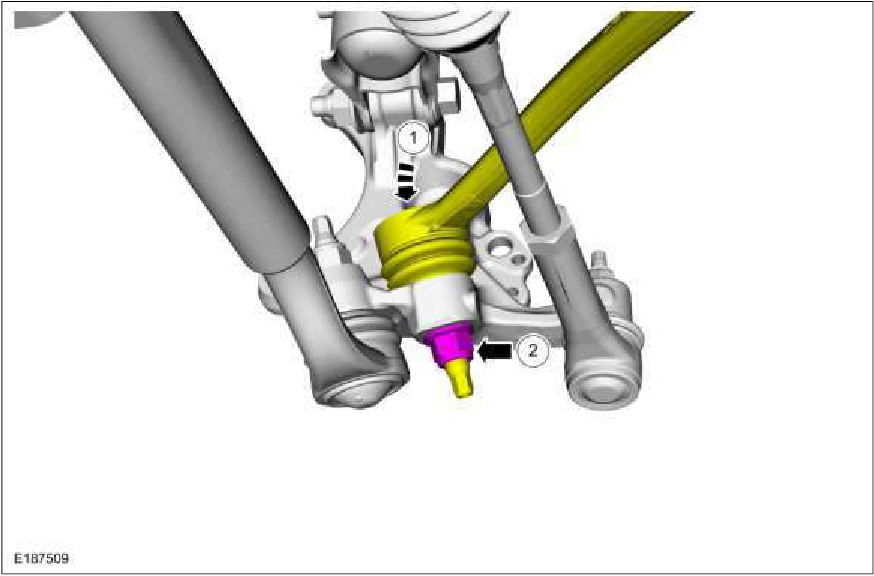

Wheel Spindle — original illustration 2, reference 2482Original colors & callouts · Select to enlarge

Step 4

1. Attach the tie rod end to the wheel spindle.

2. Install the new tie rod end nut. Torque : 59 lb.ft (80 Nm)
