204-01 Front Suspension 2016 Mustang

Removal and Installation Procedure revision date: 08/6/2015

Wheel Studs

Base Part Number: 1107

Special Tool(s) / General Equipment

Hydraulic Press

Removal

1. Remove the wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub (204-01 Front Suspension, Removal and Installation). Refer to: Front Wheel Bearing and Wheel Hub - Vehicles With: SVT Performance Package (204-01 Front Suspension, Removal and Installation).

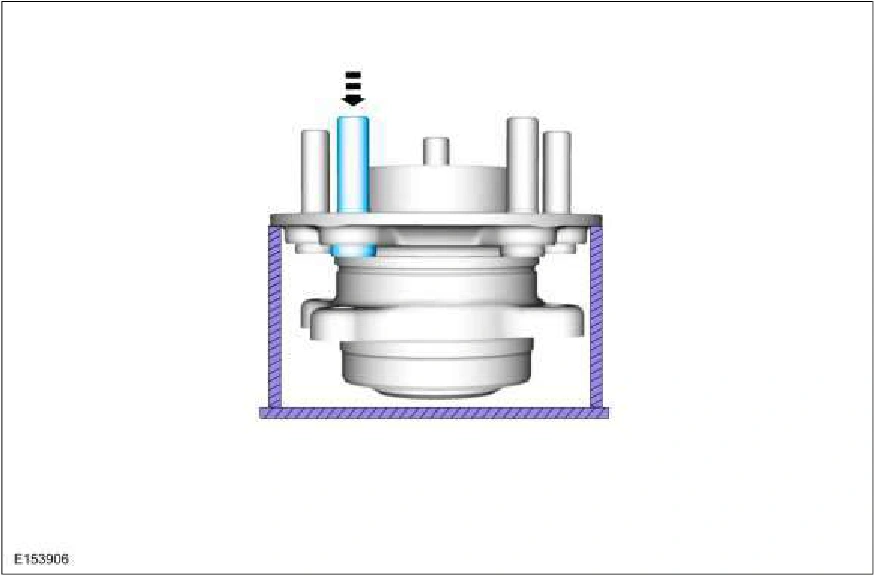

2. Press the wheel stud from the wheel bearing and wheel hub. Use the General Equipment: Hydraulic Press

Wheel Studs — original illustration 1, reference 2485Original colors & callouts · Select to enlarge

3. Inspect the wheel bearing and wheel hub for damage. Replace as necessary.
